Mile High RC Chargers



Never Charge a lipo with a charger that is not made for lipos. Never charge over the rate suggested by the manufacturer. If possible charge at a lower rate it will add life to your pack. Lipos like constant voltage and current while charging so avoid voltage or current spikes while charging. If you use your car battery to charge while at the field. Do not start you car while charging.

 Lipo Safety/Use Info Please see our disclaimer, guarantee, and a few suggestions here

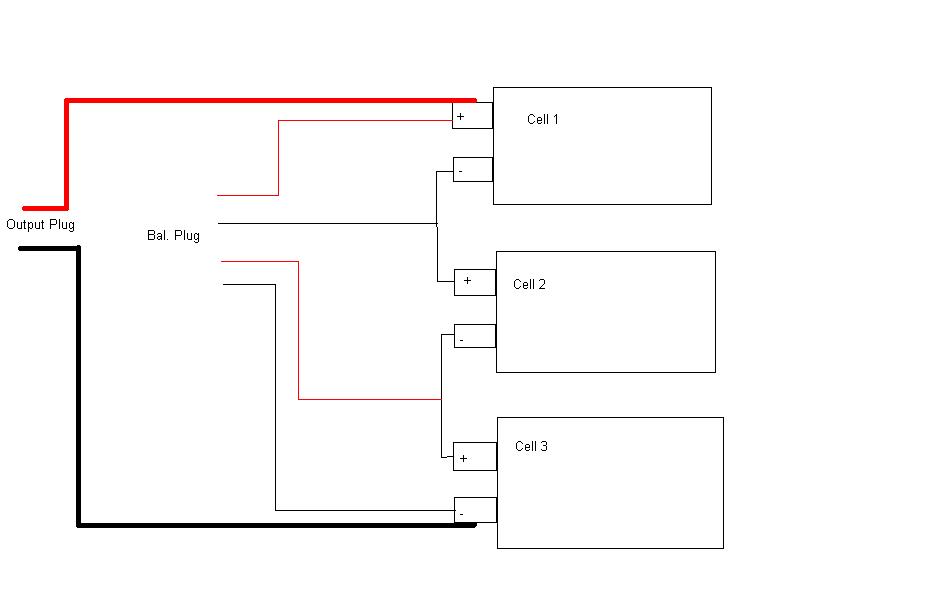

Wiring diagram for our standard balance connector can be found here and are compatible with the balance chargers on this page with the common Align balance plug.

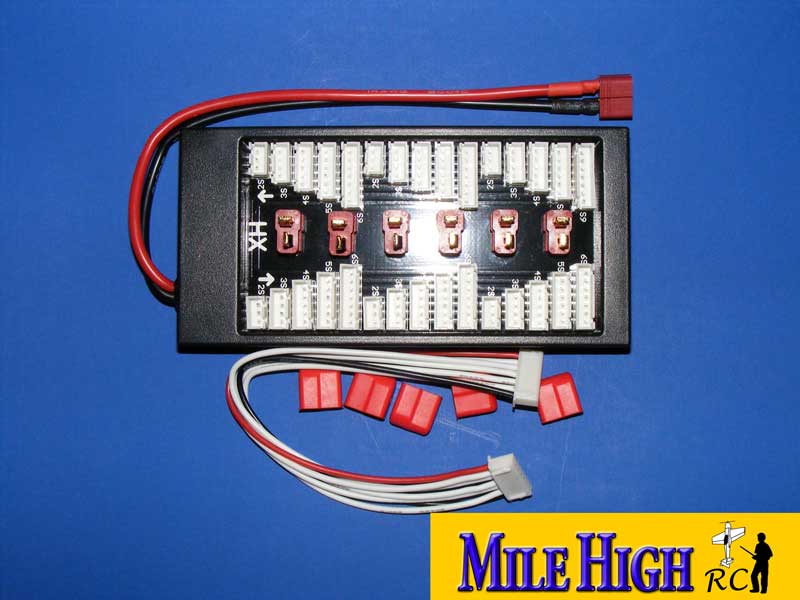

Parallel Charge BoardLipo / Life / Lion Parallel Charge Board

Charge board allows you to charge up to 6 packs at the same time. Use on 2-6 cell packs. Charge board uses Deans plugs and JST-XH balance connector.



Note - Packs should be of same voltage, chemistry, and capacity. Do not plug in packs of different voltage even if they are the same chemistry. If you are unsure of how to use this item or you are new to lipos please pass on this product. Miss use most likely will lead to fire, or at least dead packs.



1-6 Cell Parallel Charge Board (Deans and JST-XH)

$18.00

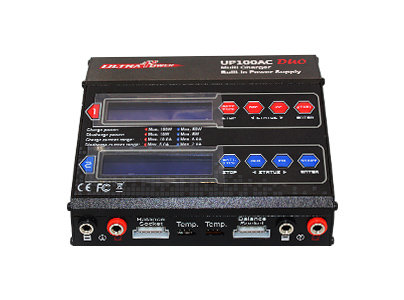

UP100AC DUO Charger



Description:
The UP100AC DUO charger is a twin AC/DC charger with 100W and 50W power for channel 1 and channel 2. It features intelligent power control function:
1. The output power base on the principle of channel 1 + channel 2 = 100Watt.
2. If only one channel is used, the output power come from channel 1 can approach to MAX. 100 watt, channel 2 can approach to MAX. 50 watt.
3. If both channels are used, the output power of channel 1 equals 100 watt minus output power of channel 2.
4. Start channel 2 while channel 1 is using fully 100 watt,the output power of channel 1 will be reduced accordingly. Each channel is capable of charging all types batteries.

Specifications:
Item brand: Ultra Power
Input voltage: AC 100-240V / DC 11.0-18.0V
Charging power: Max. 100W(CH1); Max. 50W(CH2)
Discharge power: Max. 50W(CH1); Max. 5W(CH2)
Charging current: 0.1-10A(CH1); 0.1-6A(CH2)
Discharge current: 0.1-5A(CH1); 0.1-2A(CH2)
LiIo/LiPo/LiFe: 1-6 series
NiCd/NiMH: 1-15 cells
Pb Battery: 2V-20V (1-10cells)
Balance current: 300mA/cell
Battery data memory: 10 profiles
Weight: 714g / 1.6 lb
Size: 143 * 115 * 63mm / 5.6 * 4.5 * 2.5in
Features:
Optimized operating software.
Balancing individual cells for battery discharging.
Adaptable to various type of lithium battery.
Three USB ports, 5V/2.1A for iPad, mobile phone, digital cameras, etc.
Fast and storage mode of lithium battery.
Cyclic charging/discharging.
Re-peak mode of NiMH/NiCD battery.
Data store/load.
Terminal voltage control(TVC).
LiPo battery meter.
Maximum safety.
Automatic charging current limit.
Capacity limit.
Temperature Threshold (temperature probe is not included).
Processing time limit.



UP100AC DUO Charger

$79.00




UP100AC Quad AC/DC Charger

The UP100AC QUAD Charger is a four channels identical and independent 100watt power outputs and built-in power supply, total output is 400 Watts. Each channel is capable of charging all types batteries at up to 10.0 A and discharge at 0.1-5.0A, it include 4sets fan cooling system and an internal sensor for controlling fan speed, internal cell balancers, high contrast LCD displays and important warning and safety function

*Charges 1-6 cell LiPo, LiFe and Li-ION, 1-15 cell NiCd and NiMH and 2-20V lead acid batteries

*Fast Charge, Balance Charge and Storage Charge modes for lithium batteries

*Automatically controls current rate during charging and discharging process

*Four independent 100 watt power outputs charges up to four batteries simultaneously

*Four independent balancing ports for lithium batteries

*Five user customizable pre-set per output

*Four fan cooling system with internal sensor for controlling fan speed

*Batteries can be set to automatically Charge/Discharge or Discharge/Charge up to a maximum of 10 cycles

*Automatic charge termination if battery temperature gets too high

*Temperature probe is required and must be purchased separately

*PC-based program can analyze the characteristics of each battery via a USB port, graph of voltage, current and capacity curves with individual voltage of each cell in a lithium pack can be displayed on a PC- *PC-LINK USB adaptor is required and must be purchased separately

Battery Type

Number of Cells

Voltage Level

Max. Charge Voltage

Max. Fast Charge Rate

Min. Discharge Voltage

NiCd

1 - 15

1.2V / Cell

1.5V / Cell

1 - 2C*

0.85V / Cell

NiMh

1 - 15

1.2V / Cell

1.5V / Cell

1 - 2C*

1.0V / Cell

Li-Ion

1 6

3.6 / Cell

4.1V / Cell

1C

2.5V / Cell

LiPo

1 6

3.7V / Cell

4.2V / Cell

1C

3.0V / Cell

LiFe

1 6

3.3V / Cell

3.6V / Cell

4C

2.0V / Cell

Pb (Lead Acid)

1 - 10

2.0V / Cell

2.46V / Cell

0.4C

1.75V / Cell





UP100AC Quad Charger

$189.00






Imax B6AC +





Battery Charger with a Build in AC power supply.

The IMAX B6AC+ is a great charger able to charge, balance and discharge Lion, LiPo, LiFe (A123), NiCd, NiMH, and Pb (lead acid) batteries.

Features: Microprocessor controlled, Delta-peak sensitivity, Individual cell balancing, Li-ion, LiPo and LiFe capable, Ni-Cd and NiMH capable, Large range of charge currents, Storage function, allows safe storage current, Time limit function, Input voltage monitoring. Data storage (Store up to 5 packs in memory), Battery break in and cycling. Our favorite setting, storage. Allows you to charger or discharge your lipos to proper storage voltage. Note: this is the updated version with deans pre-installed.

The B6AC can be powered by plugging it in the wall or use the alligator clips and use another power source such as a charge battery.



Specs.

Operating voltage range: DC11.0~18.0Volt ACin: 100v~240v
50/60Hz
Max. charge power :50W
Max. discharge power :5W
Charg current range: 0.1~5.0A
Discharge current range: 0.1~1.0A
Current drain for balancing Li-po: 300mAh/ccell
NiCD/NiMH battery cell count: 1~15cell
Li-ion/Polymer cell count: 1~6series
Pb battery voltage: 2V~20V
Net Weight: 531g(Net Weight)
Dimensions: 133x87x33mm

Imax B6AC +

Out of Stock




Imax B8











Spec.
Operating voltage range: 10.0~18.0Volt
Circuit power: max. 150W
Charge current range: 0.1~7.0A
Discharge current range: 0.1~5.0A
Current drain for balancing Li-Po: 300mAh/cell
NiCd/NiMH battery cell count: 1~27 cells
Lithium bettery cell count: 1~8 Series
Pb battery voltage: 2 to 36V
Weight: 480g





















The IMAX 8B is a great charger able to charge, balance and discharge Lion, LiPo, LiFe (A123), NiCd and NiMH batteries.

Features: Microprocessor controlled, Delta-peak sensitivity, Individual cell balancing, Li-ion, LiPo and LiFe capable, Ni-Cd and NiMH capable, Large range of charge currents, Store function, allows safe storage current, Time limit function, Input voltage monitoring. (Protects car batteries at the field), Data storage (Store up to 5 packs in memory), Battery break in and cycling. And my favorite setting, storage. Allows you to charge or discharge your lipos to proper storage voltage. Note: this is the updated version with deans pre-installed and the aluminum case.

The IMAX 8B is the latest incarnation from the IMAX range. It comes with all the features of the B5 and B6 but with the capacity to charge up to 8-cells.
Charge all your favorite packs including A123s (LiFe) as well as balance, cycle and discharge.

Download the Manual Here



Imax B8 Charger  $64.00

Out of Stock


 DO NOT use lipo batteries if you can not or will not follow all Lipo safety precautions.

Lithium Polymer batteries were designed for mobile devices and not for R/C use. Although some manufactures now see the R/C market as a good viable market. In general Lithium polymer technology was not originally intended for high rate use as in R/C applications. Therefore, the technology of Lithium Polymer batteries in radio-controlled models is to be considered experimental (not just ours all of them). Our cells come from a factory whom makes cells specifically for R/C use. But please follow all guidelines and precautions that are set for lithium polymer batteries. The R/C hobby is fun, it can be a daily escape, relaxing, and offer extreme thrills. The last thing we want is someone to be injured, or suffer property damage from their hobby.

We suggest you follow AMA safety precautions with any Lipo battery. Since we cannot guarantee customers will follow the proper safety precautions and use an appropriate well functioning charger with the correct settings, therefore, Mile High RC, it's agents, distributors, employees, associates, etc..  assume no responsibility for the use of Lithium Polymer battery products by our customers. Your purchase and use of this product means you accept our terms and you are fully responsible for any consequences of your use. That being said we do guarantee or packs to be free from defects of parts and or faulty workmanship.

So far with the ESL cells the only cause of pack failure has been shorting while installing a connector, or not having the pack connected properly (exposed wires). Please learn from past customers & personal experience. Do not expose the wires on both leads at the same time. Trim one wire attach to connector, cover, then work on the second lead. If you decide to use bullet type connectors (not recommended) we suggest making one lead shorter then the other. This limits the chance of  +/- coming in contact. If you need any help or would like suggestions feel free to drop us a line.

sales@milehighrc.com or milehighrc@comcast.net

Be safe and Enjoy!!

 Lipo Safety Info             Excellent info here

Don't forget to check our bargain bin. Aside from our personal R/C stuff we also test fly everything we sell, we can not possibly keep all of this stuff. Believe us it piles up fast and we only have so much warehousing available. So we sale or trade in the bargain bin.



All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
