This truly is more then just a servo tester. It is an awesome aid in helping you set up your servos. If your still grinding through servos or getting brown outs its quite possible you have no clue what kind of load your servos are putting on your gear. With 4 way independent data collection it allows you to test up to 8 servos on 4 different channels. It also shows you the draw in a graph format the helps it make sense. You can even update the firm ware via included USB cable. Providing speed, voltage, current, power, and signal data this unit is a very helpful aid for anyone who set up servos.

Specifications:

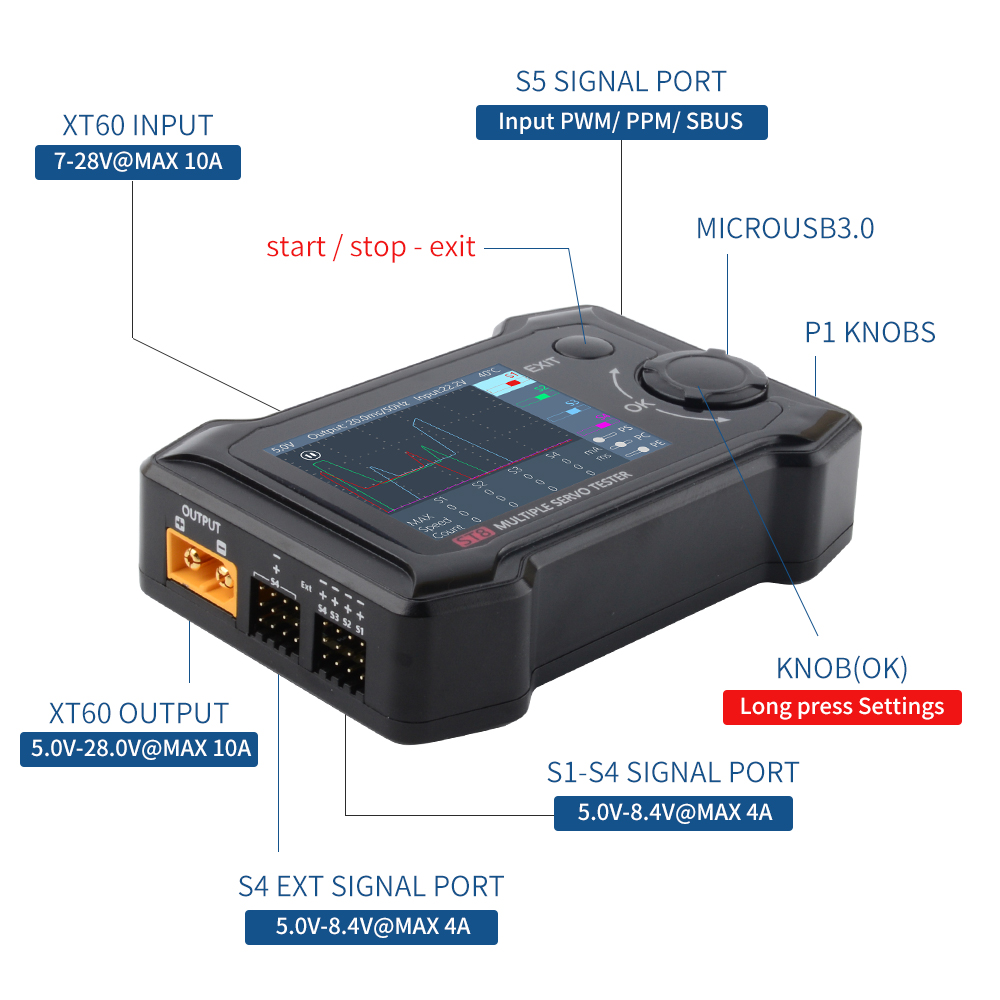

Input Voltage: 7-28V @ 10A

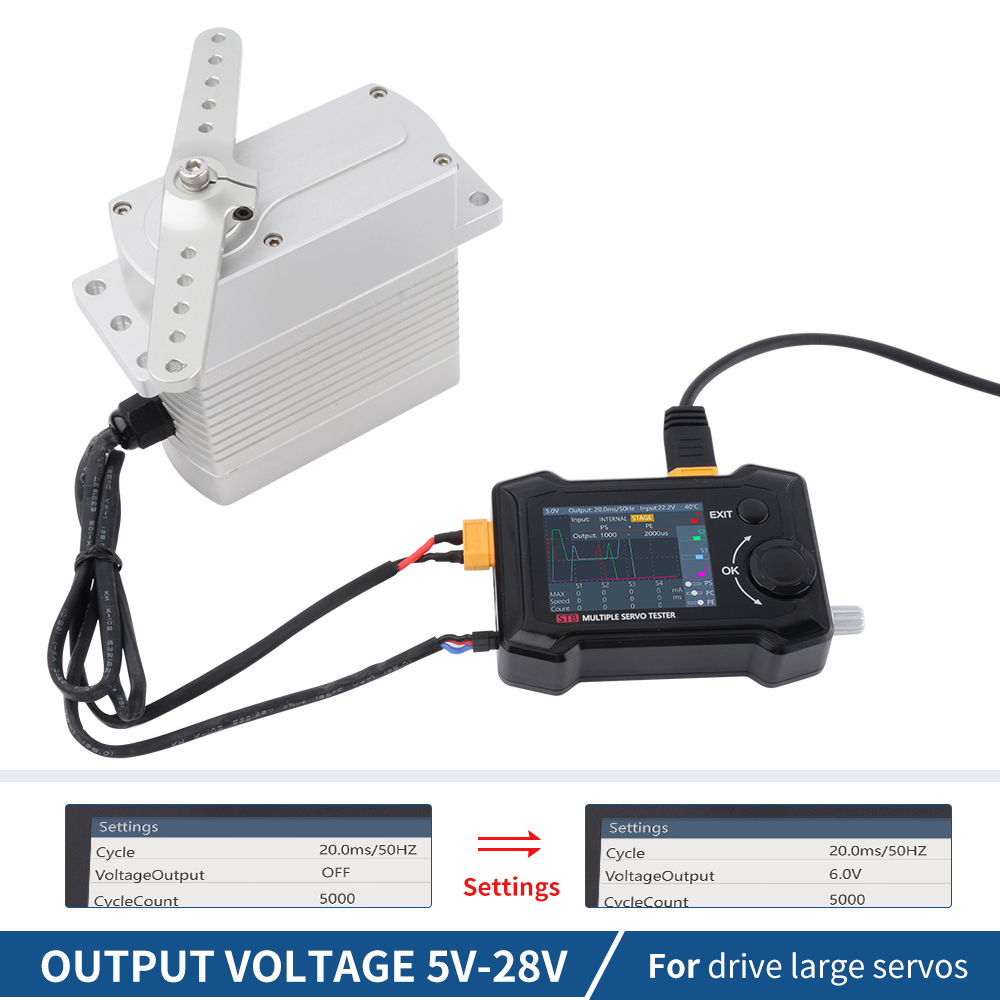

Main Output Port: 5-28V @ 10A

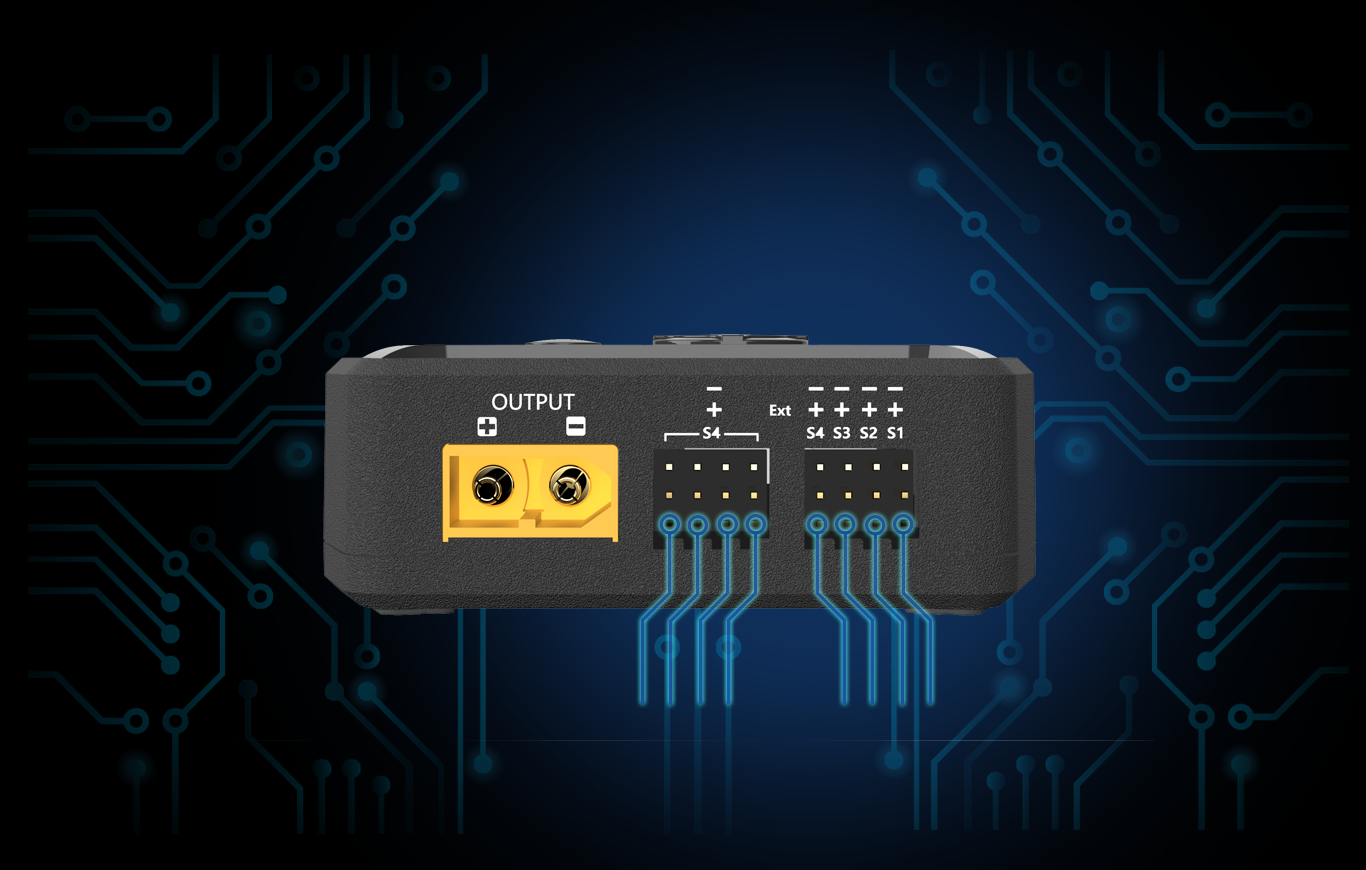

Signal Port Output Voltage: 5-8.4V @ 4A (S1-S4 Ports) | 5-8.4V @ 4A (S4 Ext.)

Output Signal: 1000-2900uS @ 33-1000Hz @ S1-S4 | 500-2500uS @ S5 (PWM) | PPM 8CH @ S5 | S.Bus 16CH @ S5

P1 Rotation Range: 1000-2000uS @ P1

Micro USB: USB Upgradeable

LCD Display: 2.4 Inch RGB 320x240 resolution

Dimensions: 99x68x26mm

Weight: 120g

Features:

The ST8 is a product for testing servos, with up to 28V voltage output, 8-channel signal output, current measurement, curve display, and other functions.
4 channels of programmable independent signal, 8 channels of signal output, the accuracy of 1 ms.

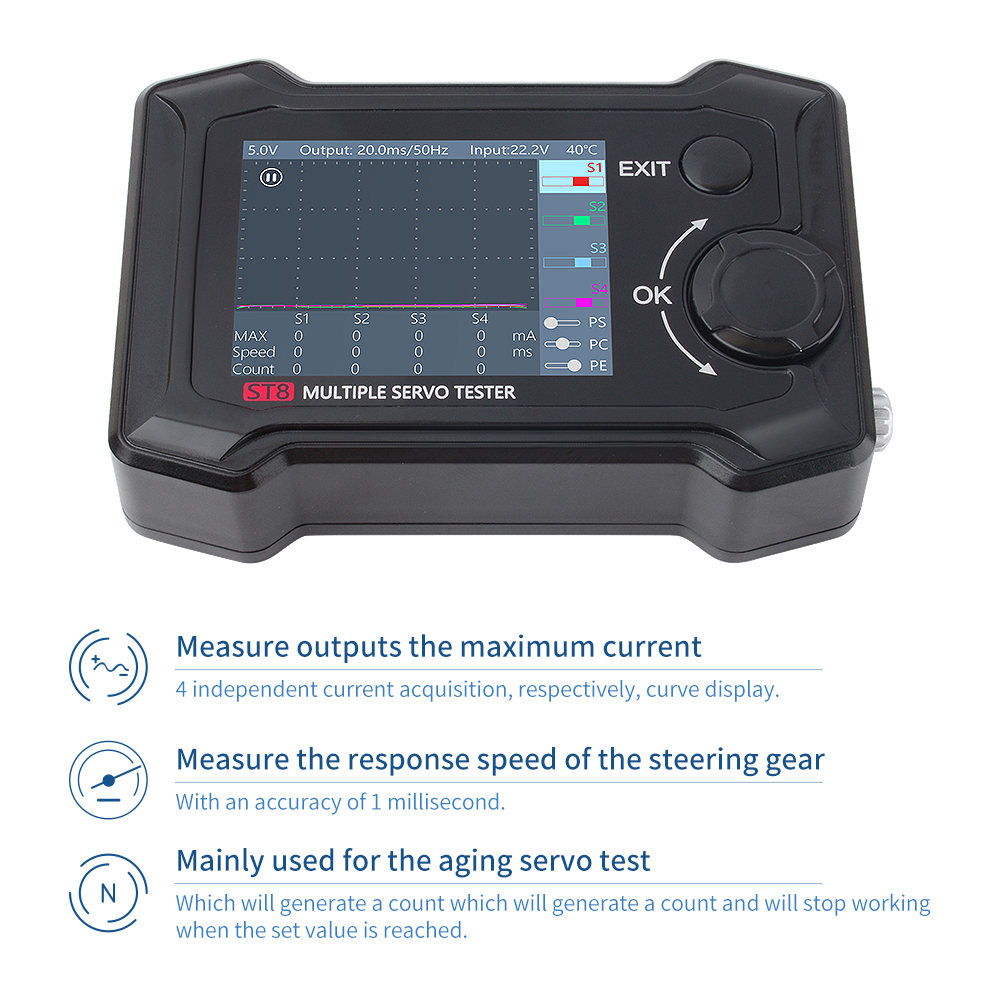

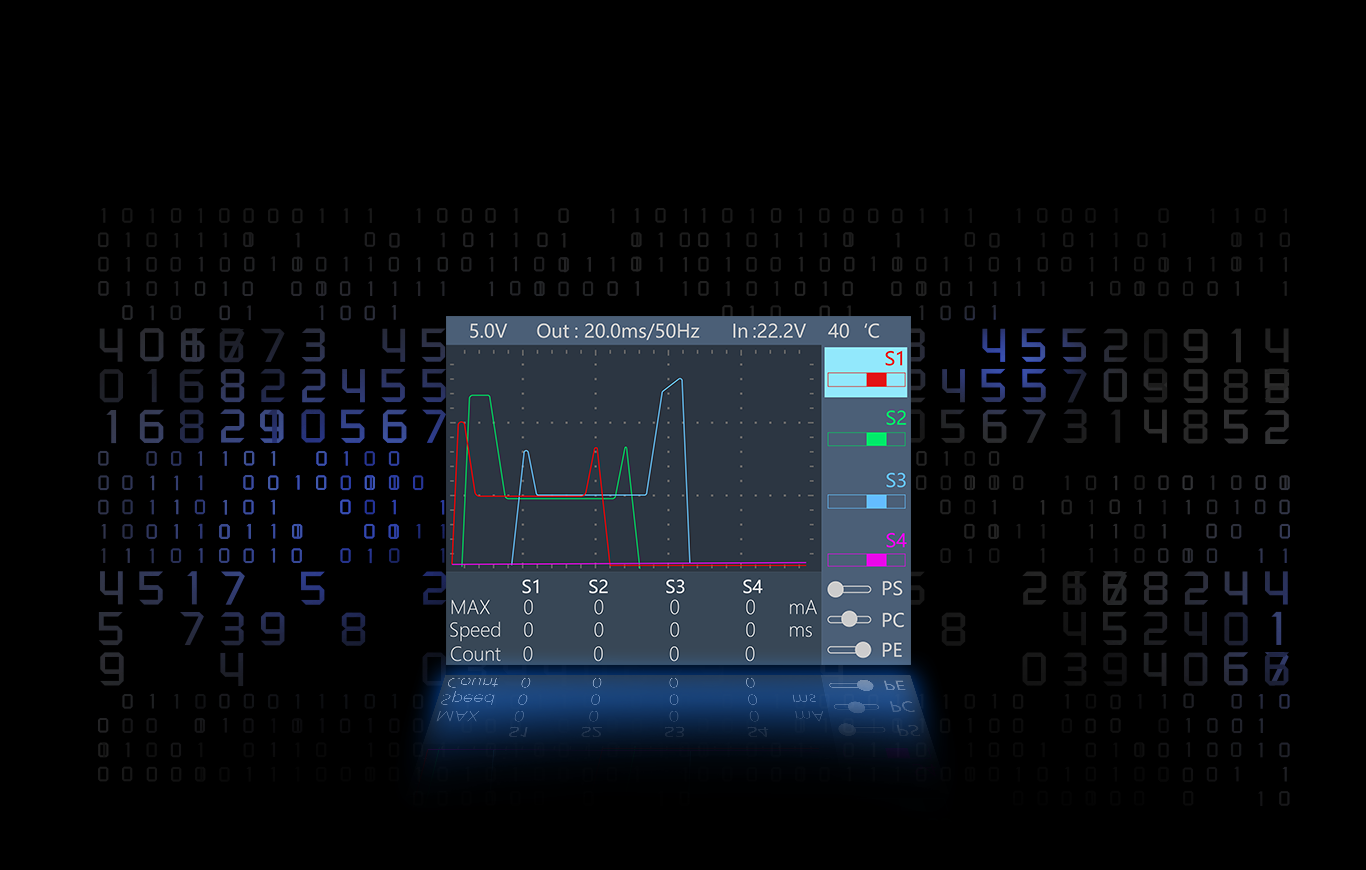

4 independent current acquisition, respectively, curved display.
Multiple measurement modes (speed, count, step, linear).
output PWM signals with a period of 33 to 1000 Hz.
A variety of signal trigger sources (internal, buttons, knobs, external sources).
Measure the response speed of the steering gear with an accuracy of 1 millisecond.
The external input signal supports PWM/ PPM/ SBUS with an accuracy of 1 ms.
Drive the servo with a maximum load of 100W.
The device is simulated as a USB flash drive, and the upgrade file is copied to implement a product firmware upgrade.

ST8 Advanced Multiple Servo Tester

$54.00

All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
