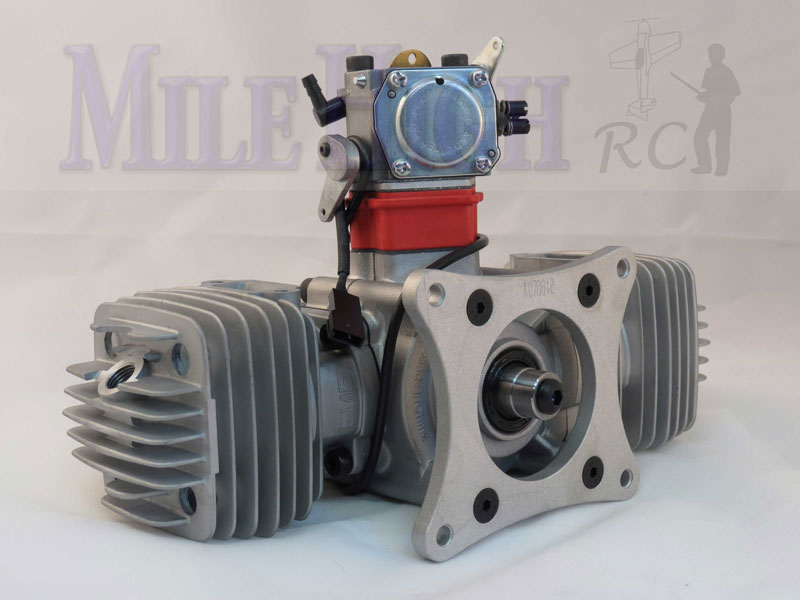

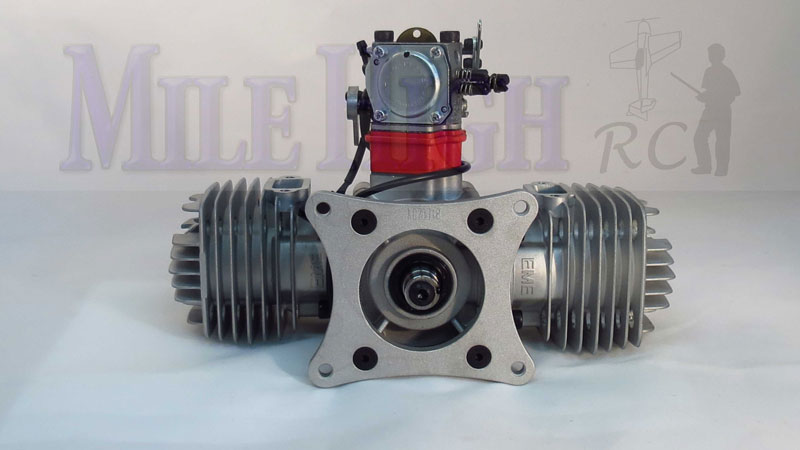

EME 70CC Twin Gas Engine



Some cool things about the EME 70

Walbro Carb

Ceramic coated cylinders

NSK main bearings

IKO rod bearings

EME HV Ignition (2-cell LiFe or Lipo compatible)

Only 250mm Plug Cap to Plug Cap

Same foot print as EME55/60 (DLE55)

Same prop bolt pattern as EME55/60 (DLE55)

18 Month warranty serviced right here by Mile High RC.

Our customers also receive cost plus 10% for parts that would be non warranty such as crashes.

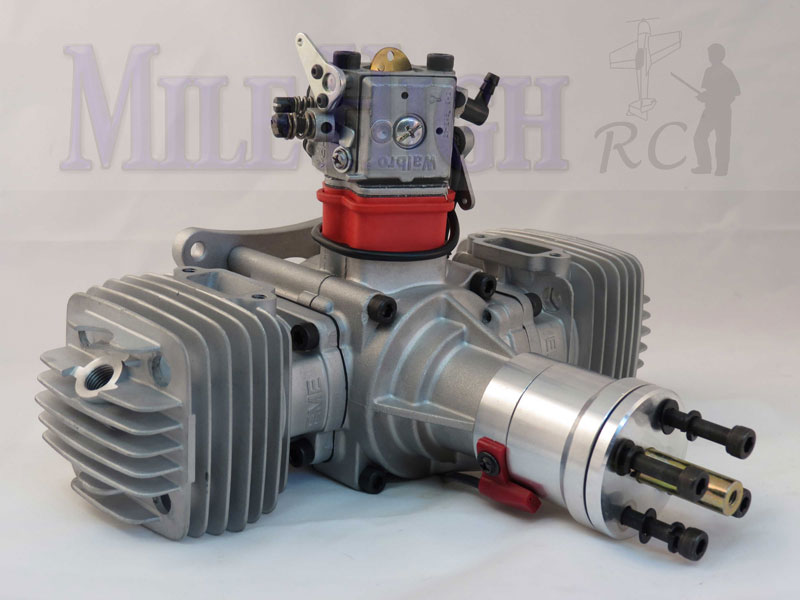

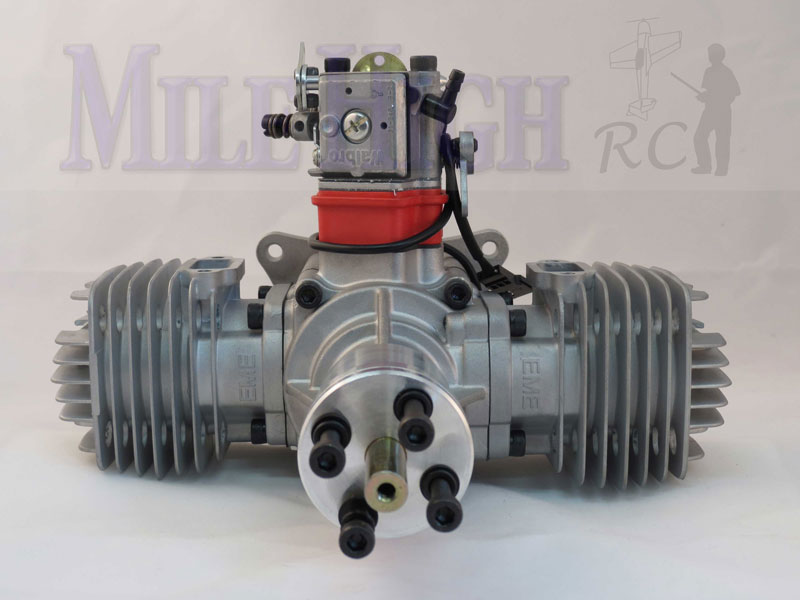

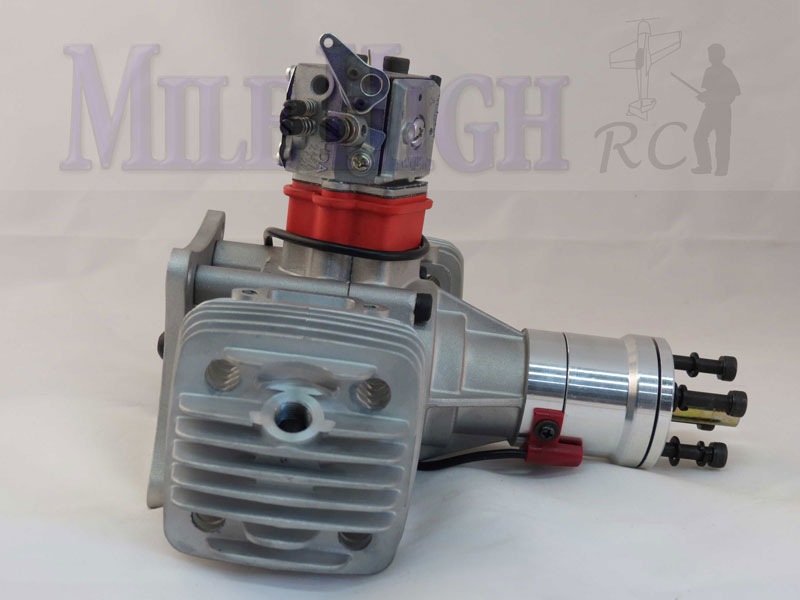

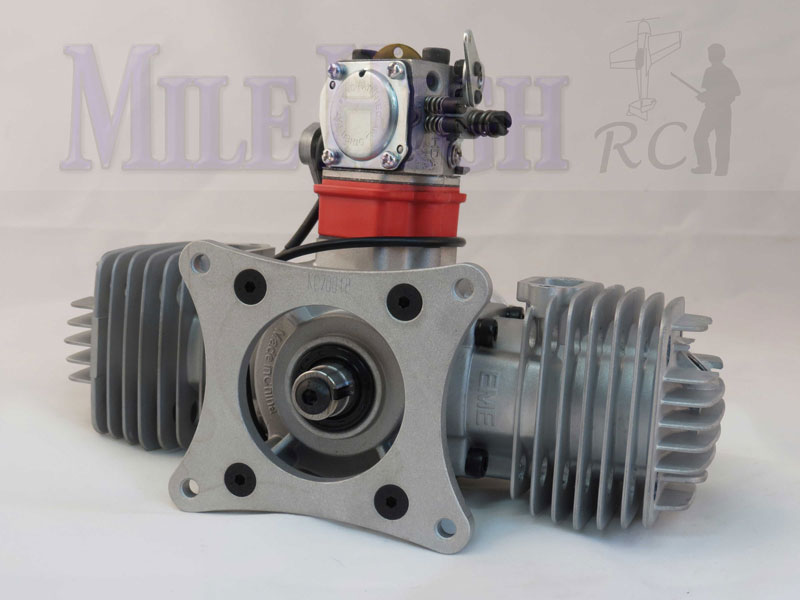

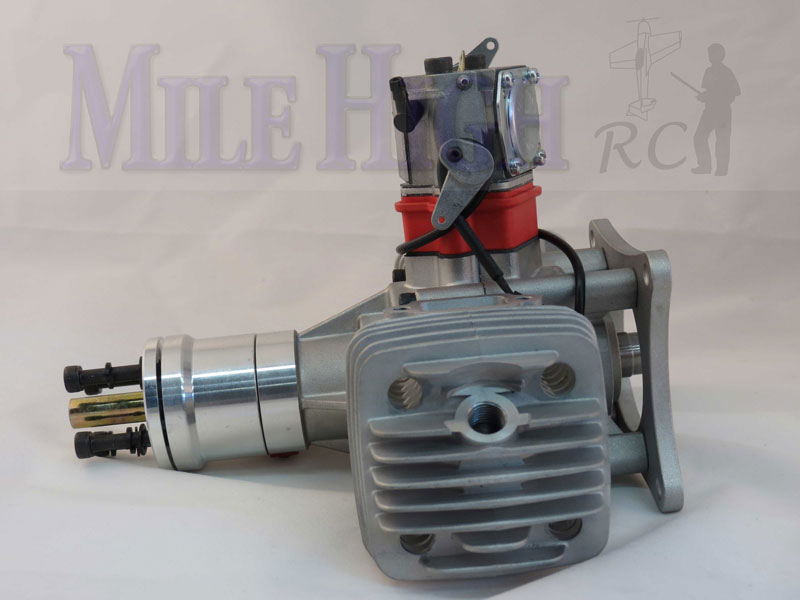

EME 70CC Twin 70CC Twin

Twin 70CC RC Gas Motor EME70

EME Twin 70 EME 70 EME 70CC

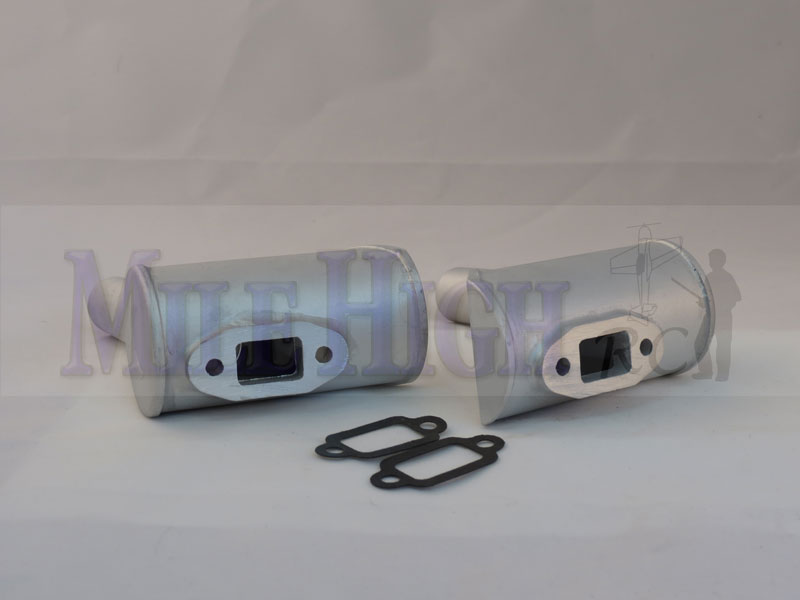

EME 70 MufflerEME Hobby







Download the Manual - Here     Dimension Diagram - Here

Exploded Parts Diagram Here

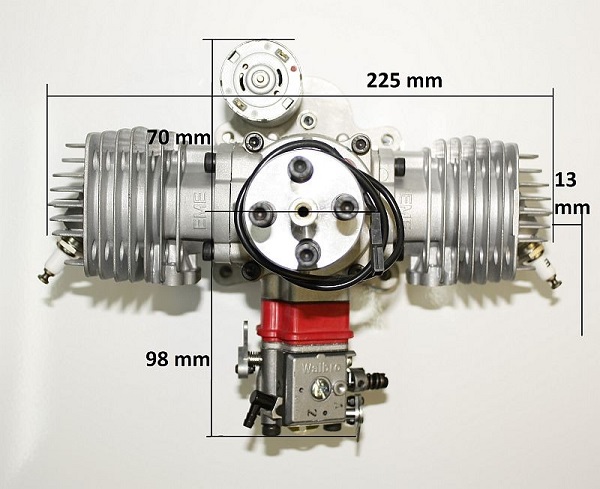

Plug to Plug is about 240mm

Cap to Cap is Approx. 250mm (9 3/4")

ME8 plug conversion is a tight 9 3/8" cap to cap



Ceramic Coated Cylinders!!

Video Below





Shipping to US destinations. International shipping enquiries to: sales@milehighrc.com





EME 70CC Twin

EME 70CC

Free NGK CM6 Plugs

$519.00



International customers drop us a line.





70cc starter

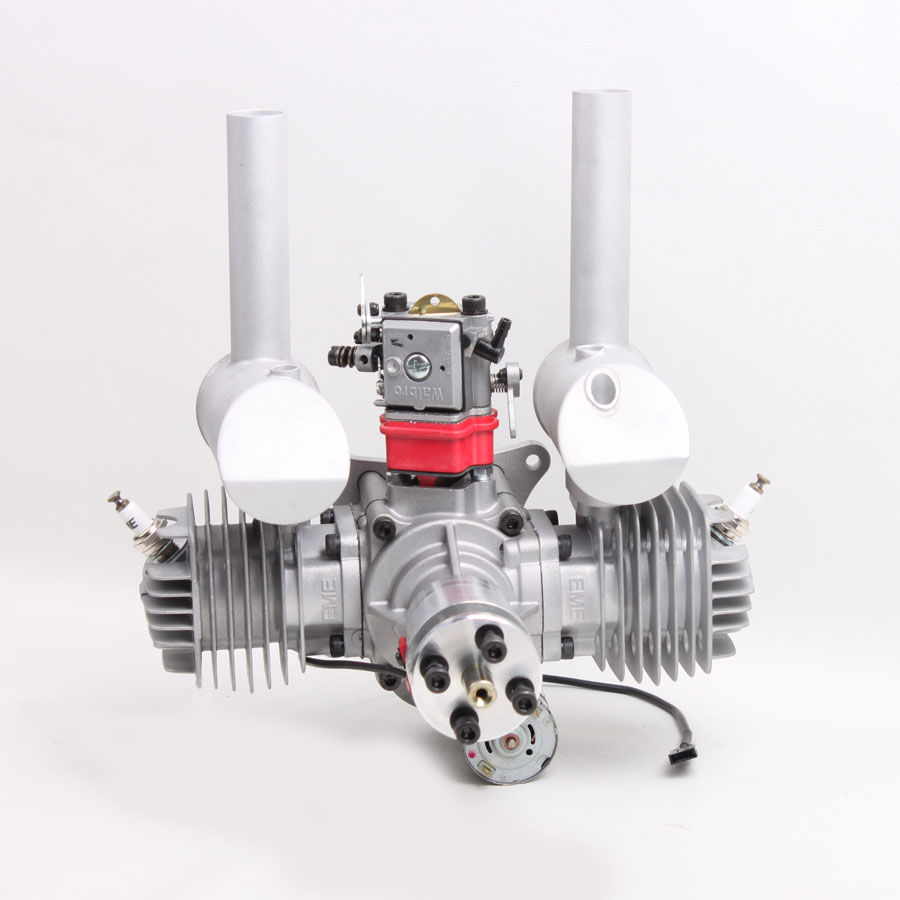

EME 70AS

With Factory Installed Auto Starter

Includes Free NGK CM6 Plugs

$629.00

EME 70AS (Free NGK Plugs) - US Destinations





International customers drop us a line.



No starter system instructions are included

No starter system instructions are included

USA Destinations.

Save $5.00 - Starter Controller via drop down menu above.

Suggested to use a 3 cell lipo capable of 50 Amp bursts.





In Stock on the muffler page



Video Below

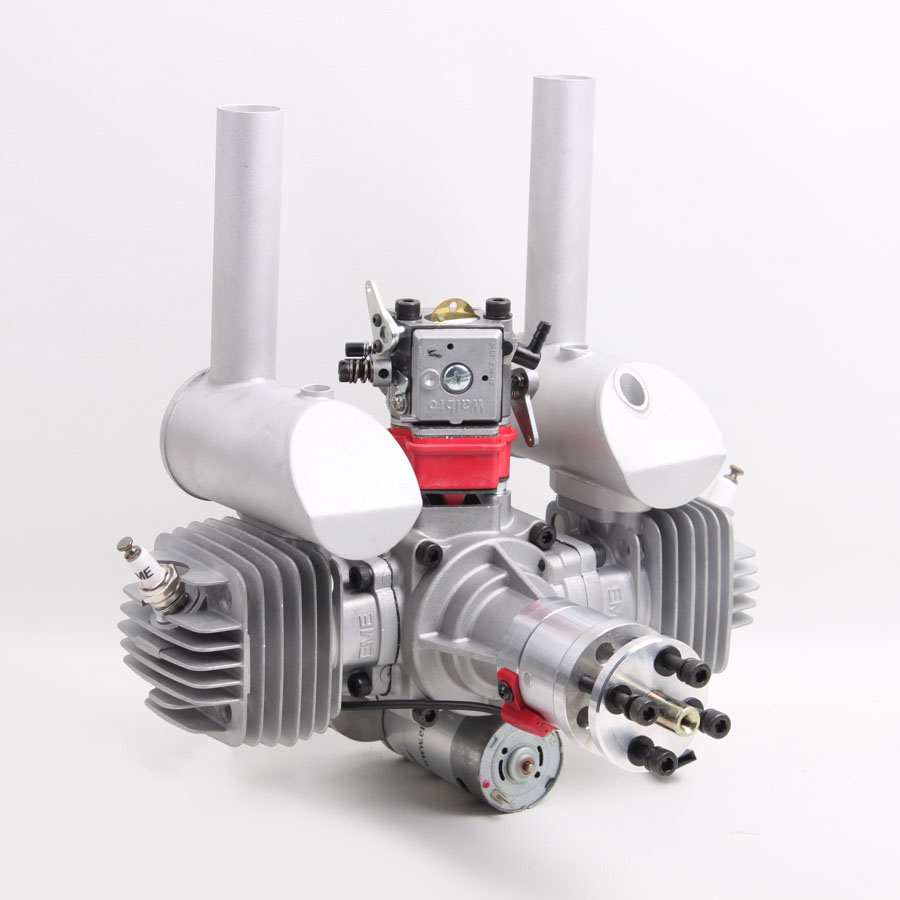

EME 70AS 70cc starter EME 70 Auto Start



70cc TwinEME7070cc with auto start70cc RC GasEME 70as







We will meet or Beat any other Authorized dealers price (including shipping).


Specifications:
Displacement: 70 cc
Weight: Engine - 1800g  Muffler - 165g Ignition - 190g
RPM Range: 1,200-7,500
Output: 7.1 hp @ 7,000 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: Engine, Ignition, Mufflers, Spark Plugs, Exhaust Gaskets, Bolts, Standoffs, Manual, and Decals
Suggested Propellers: 23x10, 24x10, 24x12 (3-blade: 22x10, 22x12, 23x10) - Load for 6,100 to 7,100 RPM.

Technical Data:


Ignition Battery: 4.8v - 12v Ignition (2-cell LiFe or LIPO suggested)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1 ~ 35:1
Replacement Spark Plug: NGK CM6 or equivalent

Carb: Walbro HDA-246A







Some of you have some serious flight time on your engines. How about a quick freshen up with a complete upper end kit.

EME Parts

EME 35/70 Upper end / Freshen up Kit Includes 1 of each - Piston, Piston Ring, Wrist Pin, Wrist Pin Bearing, Cylinder, Cylinder Gasket.

$92.00 (Youll Need Qty. 2 for the 70)

EME 70 starter
Starter and starter spare parts can be found on the EME 70 starter page Here

EME 70 Short Block
This consists of a crankshaft and main bearings installed is a crankcase (nothing else). All oher parts need trasfered. Intended to be a labor savor or help folks without proper tools or skill set.
$204.00

Crankshaft - $108.00



Piston, Pin, & Bearing - $15.83

EME 35/70 Piston Ring- $7.39

Prop Hub - $26.00



Reed Block - $19.00

Case - $88.00

Cylinder - $75.60

Gasket Set - $15.00



Stock Muffler (Pair)- $57.00

EME 70 Standoffs

$21.36

EME 70 Carb - $51.00

Woodruff Key - $1.20

EME 70 Mount Plate - $20.00

EME 70 Main Bearings (all 3)

$27.00

EME Twin HV Ignition (Black Box)

$82.00

EME Hall Sensor - $10.00





Video Below



Head over to Flyingrc.net and check out a review, with video of the EME 70

 (and some other cool stuff)
