DLE 55CC Gas Engine

Latest Version



The two things you can count on in giant scale.

The first is that you can always use a little more power. And the second is that there's a DLE engine to deliver it.
The DLE-55 generates 2.2-4.4 pounds of static thrust than the original DLE-50 and gives you a WalbroŽ pumper carb to make the most of it.
That means you'll have the throttle response you need at any time and attitude…and the power you need to nail any maneuver you want to fly.


DLE55        DLE 55

DLE 55CC Gas Engine DLE 55 DLE55

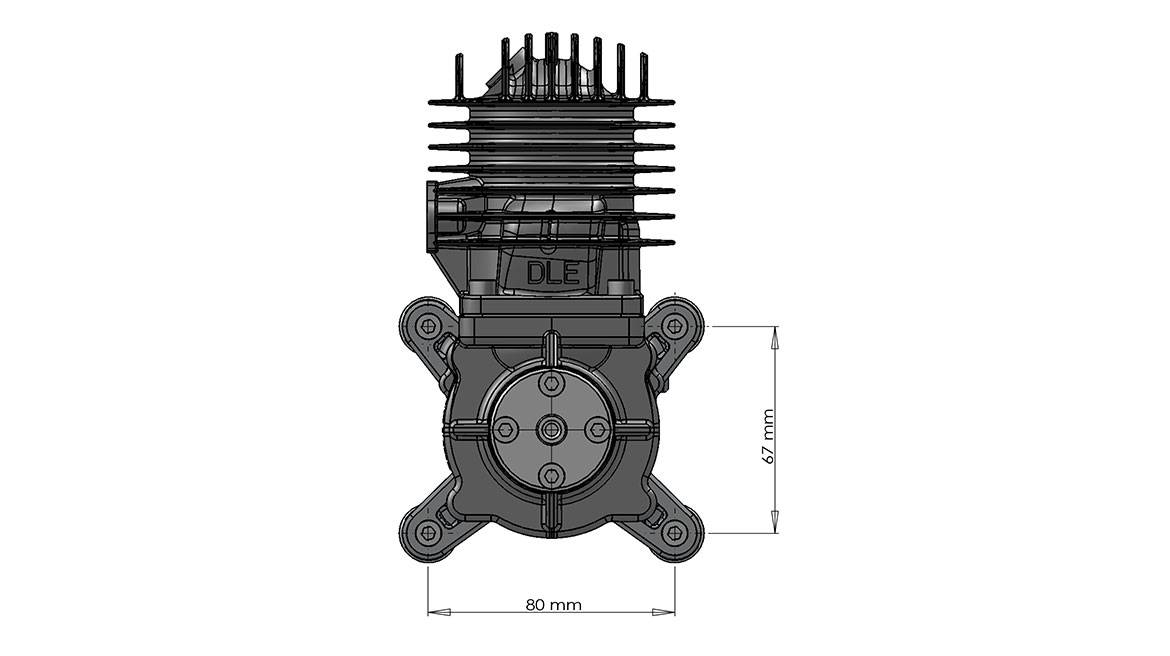

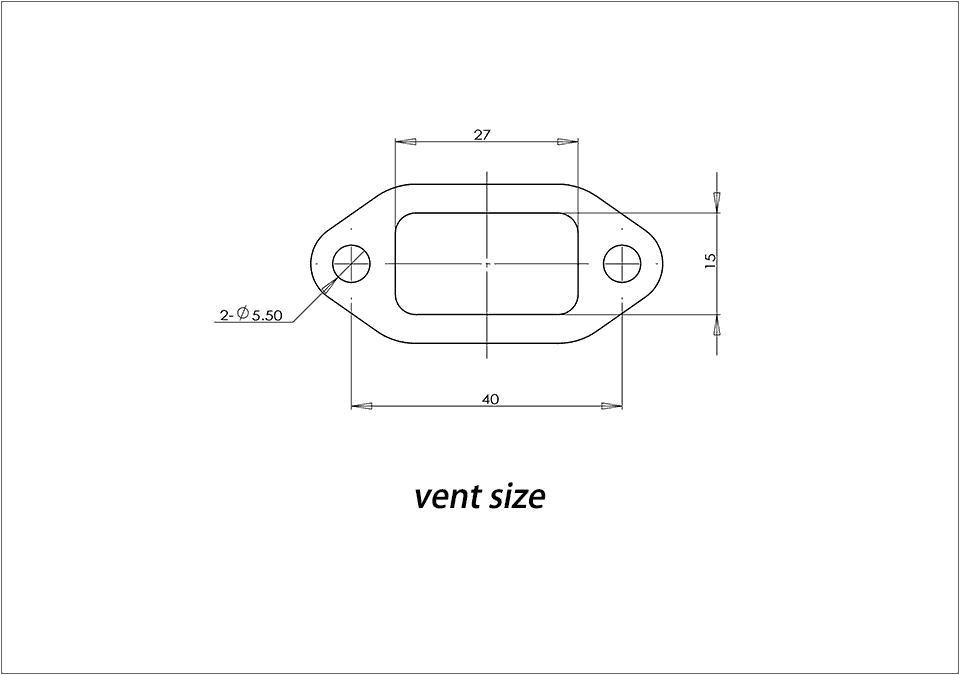

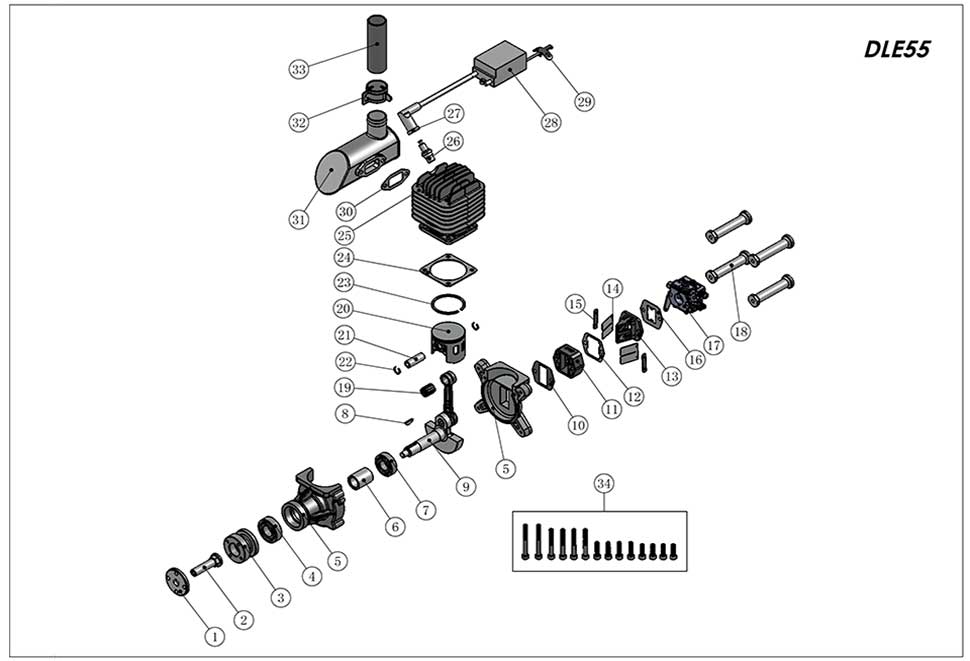

DLE 55 SizeDLE 55 Schematic DLE 55 length

Download the Manual - Here



Specifications:
Displacement: 55.6 cc (3.392 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1.65 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 22x8, 22x10, 23x8 & 23x10


Technical Data:
Manifold: 4-petal, V-type, reed-valve, bottom induction
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)




DLE 55CC Gas Engine

DLE55

DLE 55 Discontinued by Manufacturer

Please see the EME 55 It is an Awesome Value

or the DLE 55RA





Add an Auto Starter to your DLE55. No More Flipping props.



Mufflers For DLE55 Can be found Here



All DLE motors come with a 2 Year Limited warranty. But with Mile High RC motors if your engine is DOA we replace the entire unit. Every nut, bolt, washer, even the ignition gets replaced. After the warranty term or for non-warranted repairs such as a crash we will service your motor for cost of parts + 10% and return shipping.





All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
