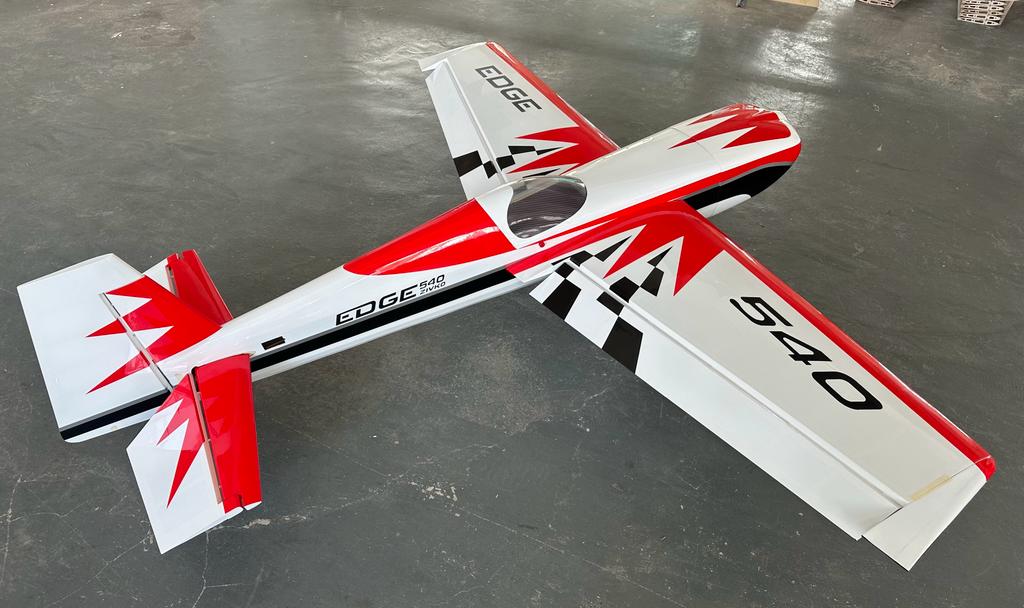

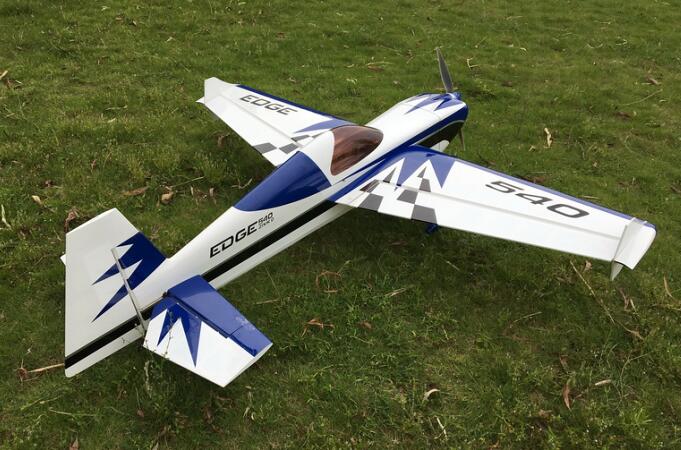

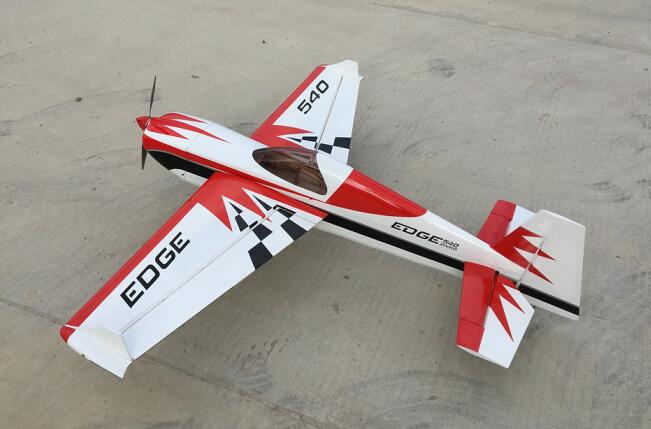

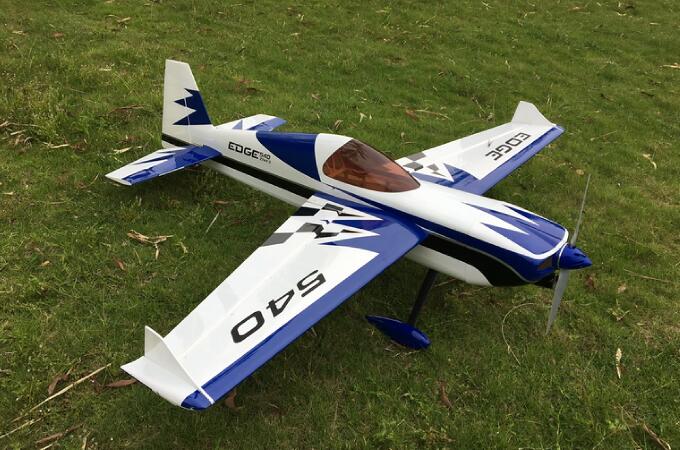

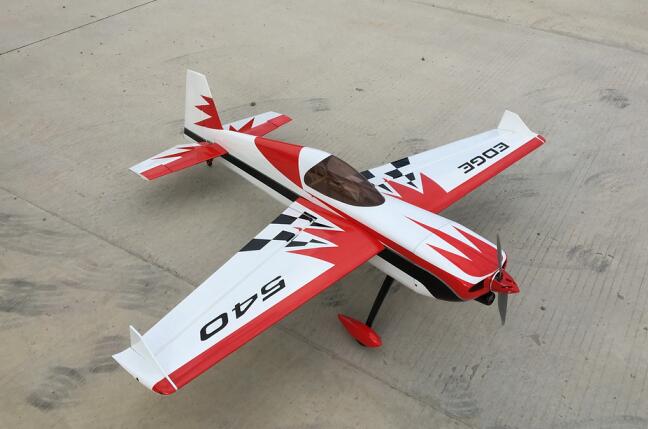

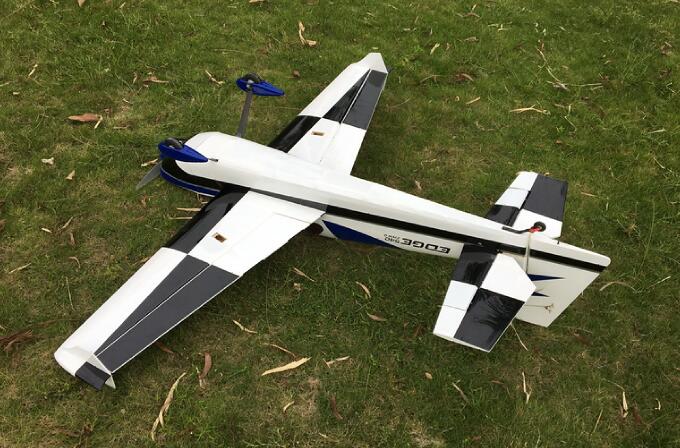

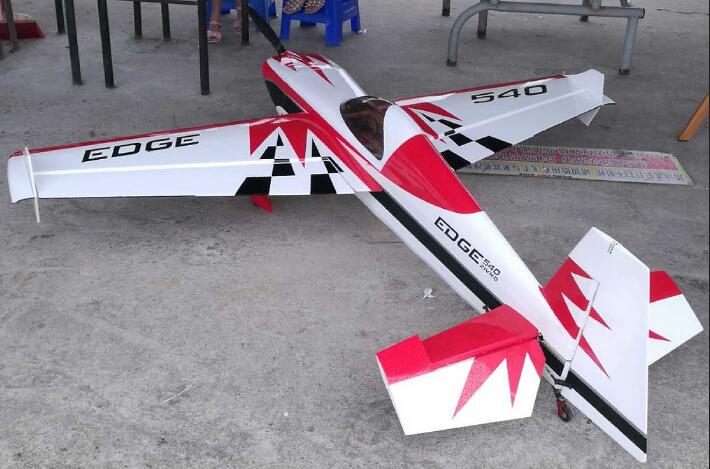

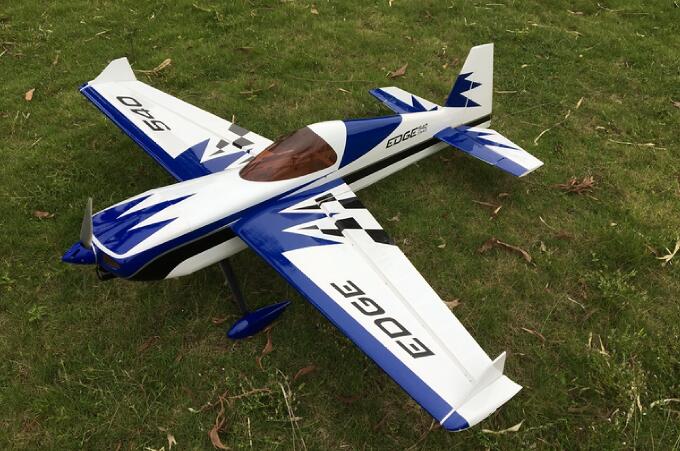

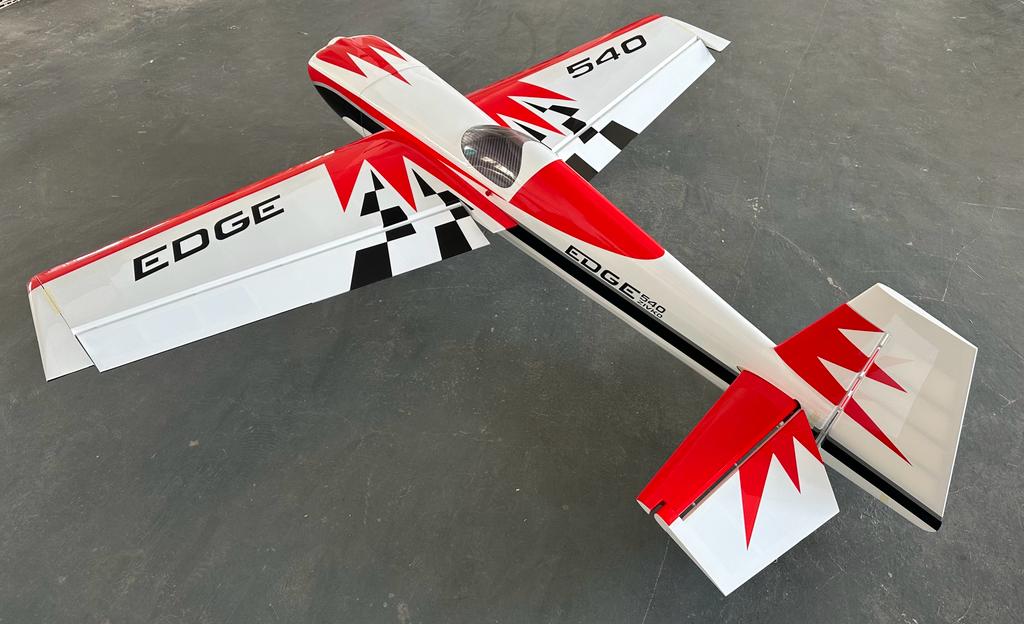

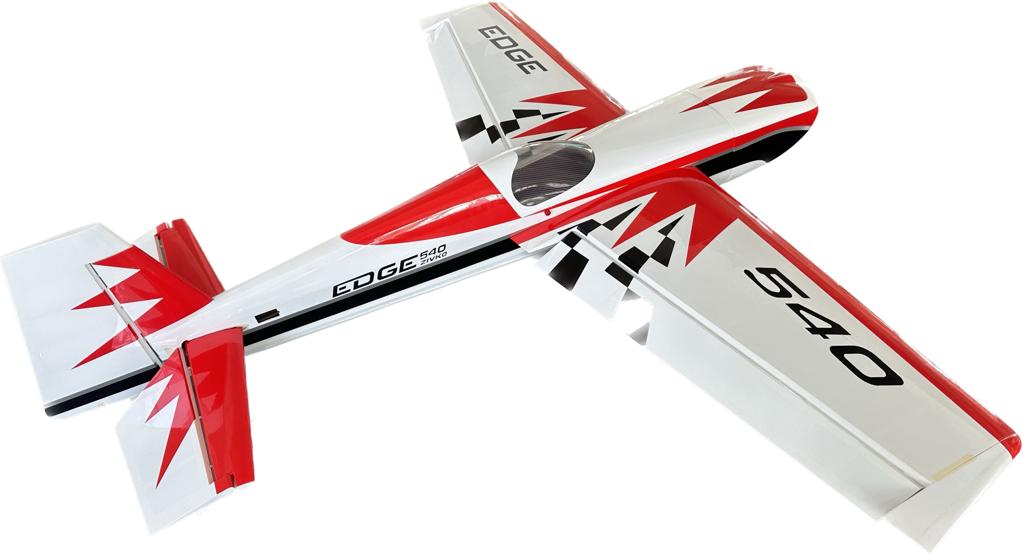

75" 30-35cc Edge 540 ARF

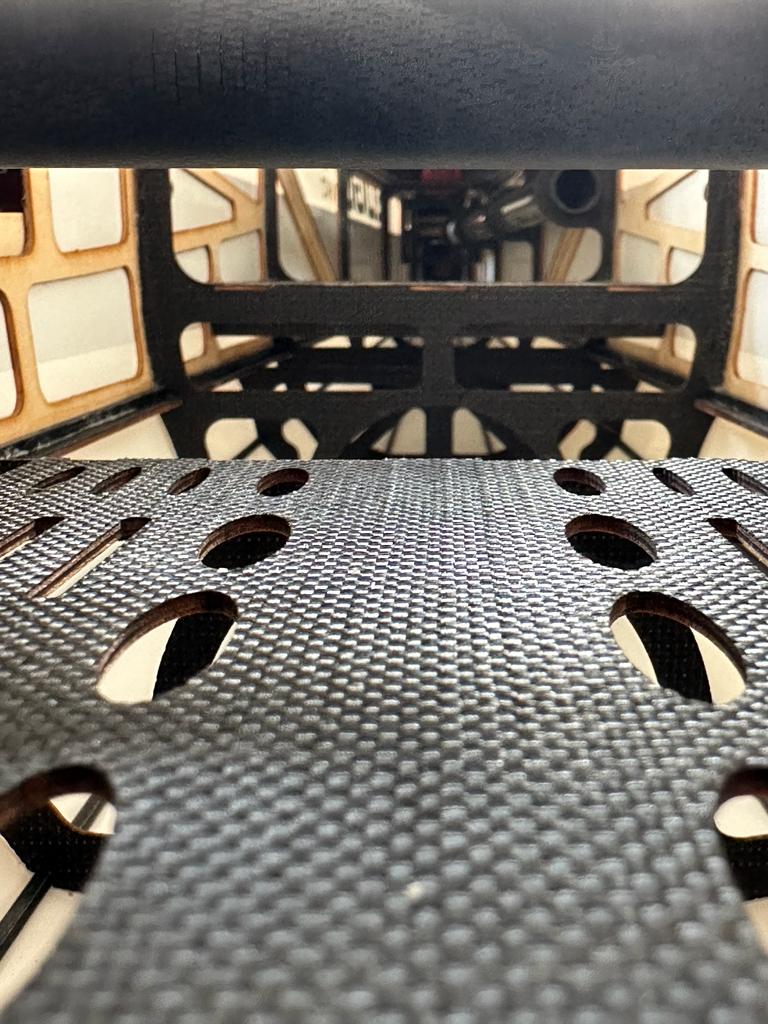

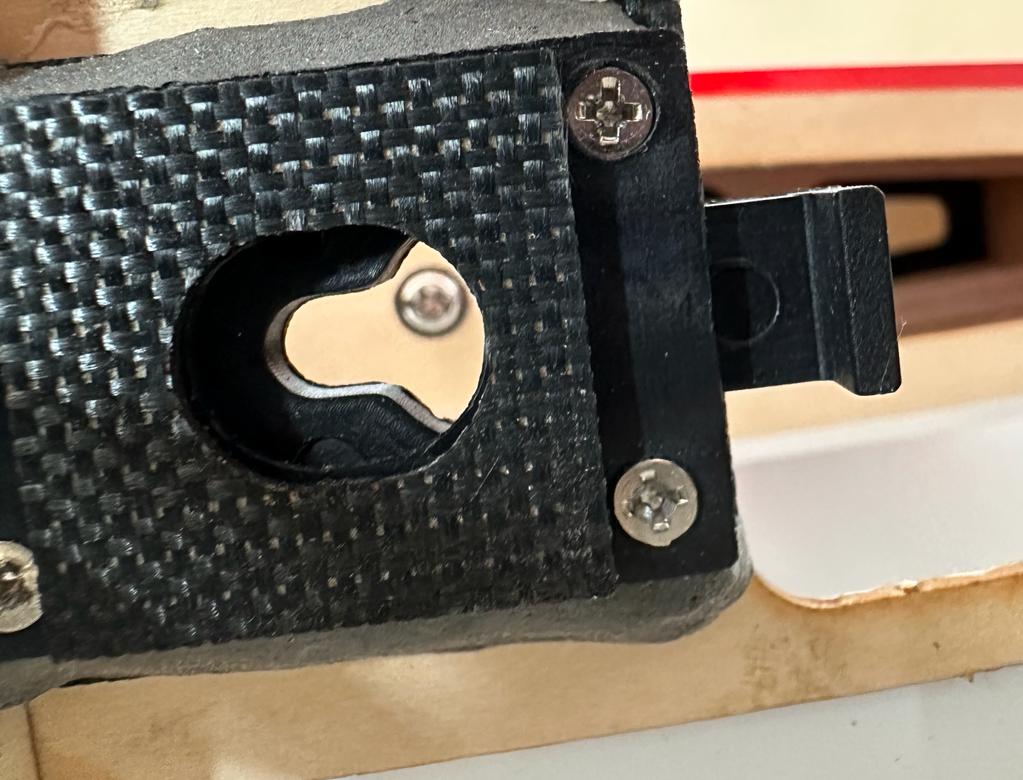

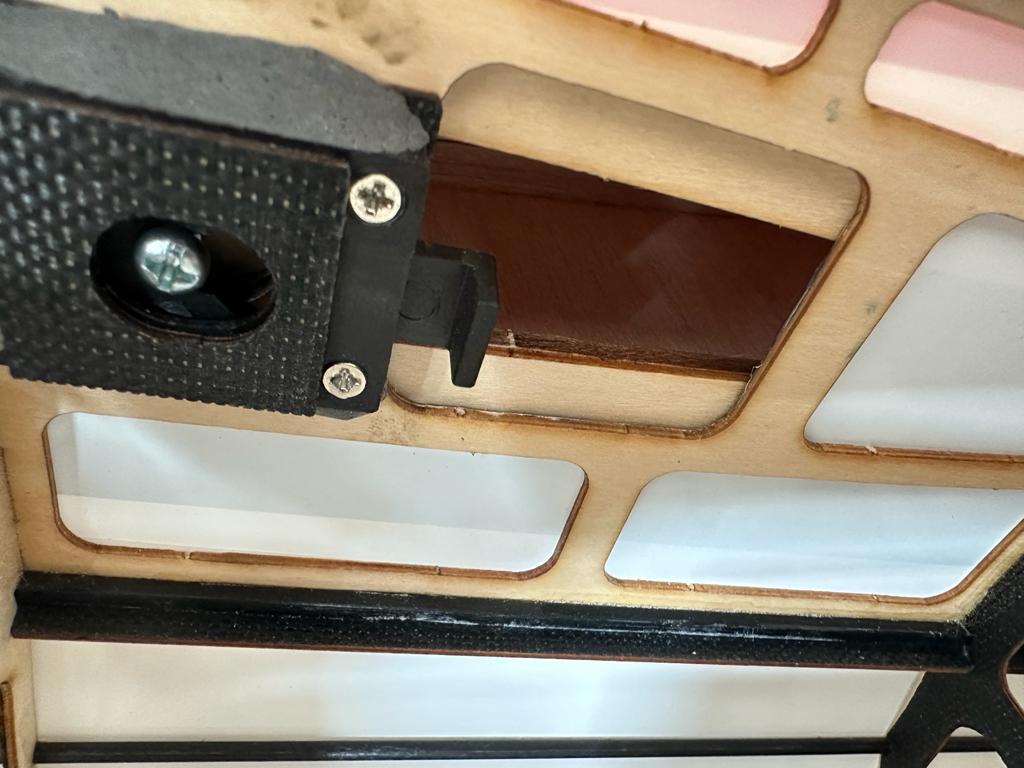

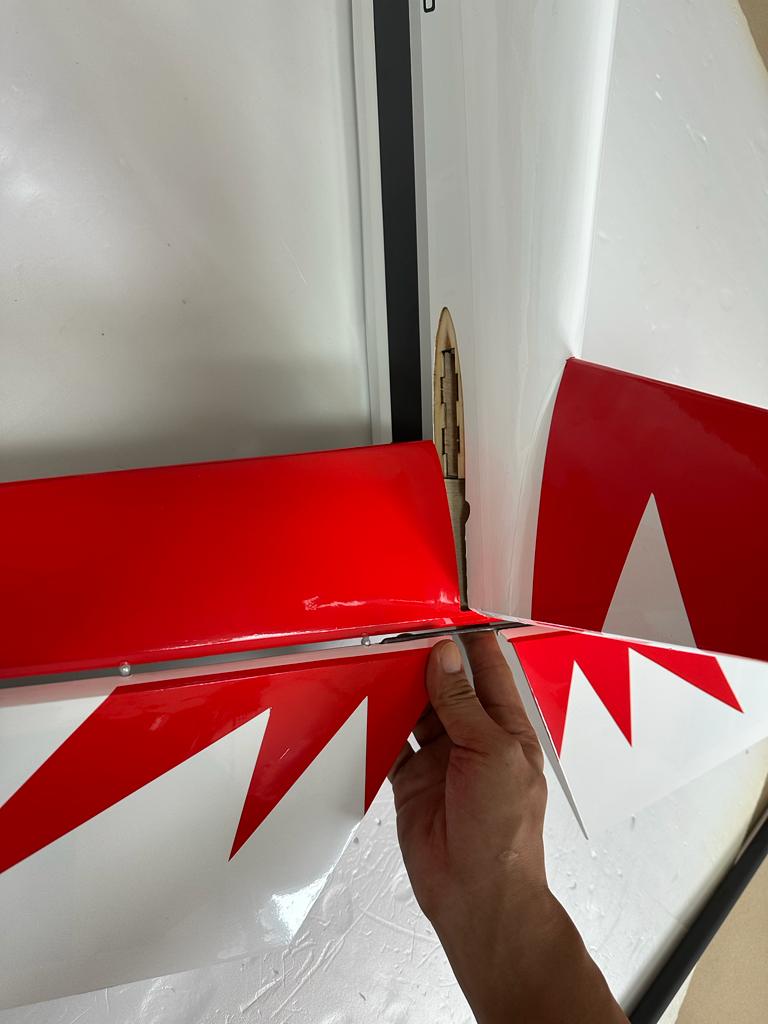

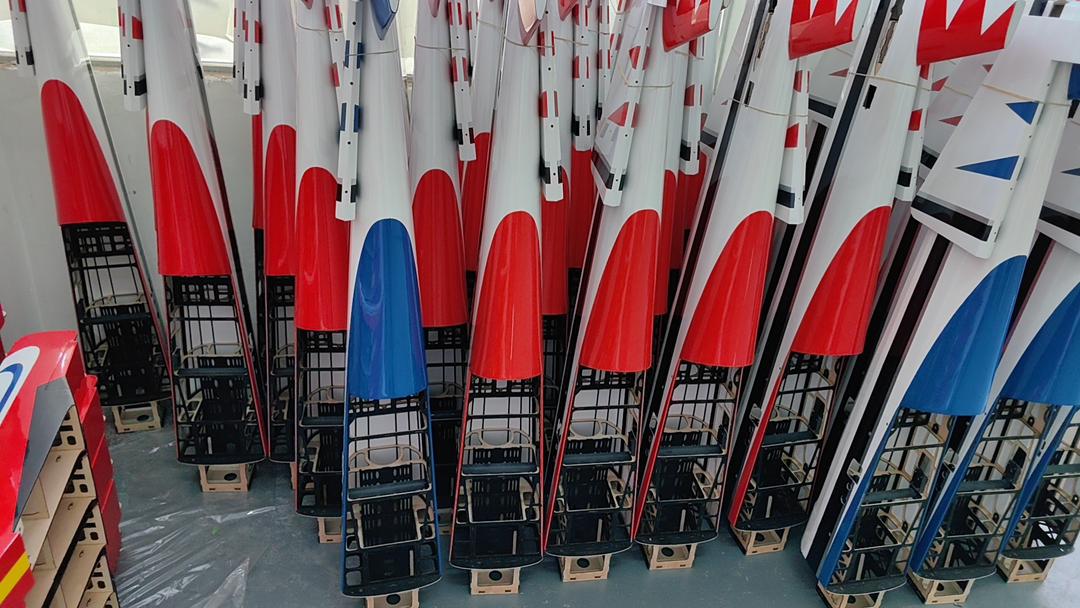

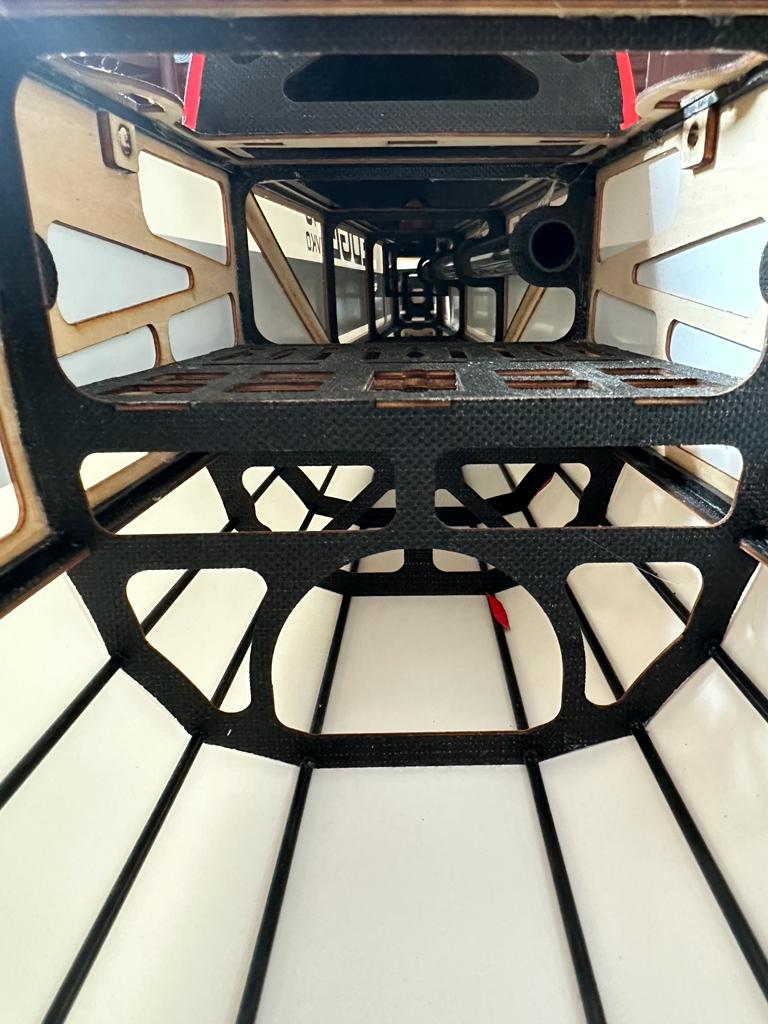

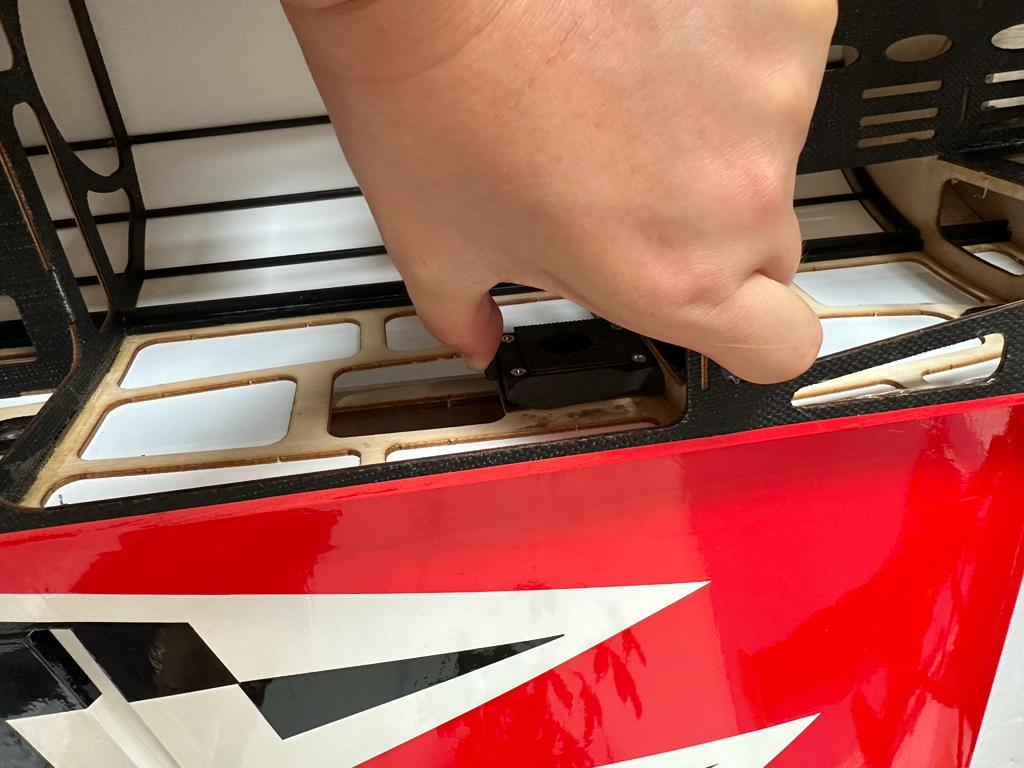

New for 2023 this Edge has been gone through and worked with sensible upgrades that actually make sense. Check out the carbon fiber deck of the canopy. Some of the trays, formers, and runners are carbon fiber and/or laminate. New wing and canopy lock sysytem. Over all fusealage is stuffer and sockets make for a better horizontal stabaliser fit making it much easier to square the airframe. SFG's and optional wing tips are included.



75" 30-35cc Edge 540   Wing Span: 75.2"(1910mm) Length: 67.7"(1720mm) Wing Area: 1021sq in(65.9sq dm) Kit Weight: 5.5 lbs - 6.3 lbs (2500g - 2900g)    Gas Power:28-40cc gas  EME35 - DLE 30/35 - NGH 35cc Electric Power： DUSKY XM6350EA-12 with 8S 3700-4400mAh 18x10 prop DUSKY XM6360EA 184KV 12S 3300-4400mAh 20x10 prop G30cc Or other 2600-3000Watt electric motor ESC：90-120A 3" Spinner

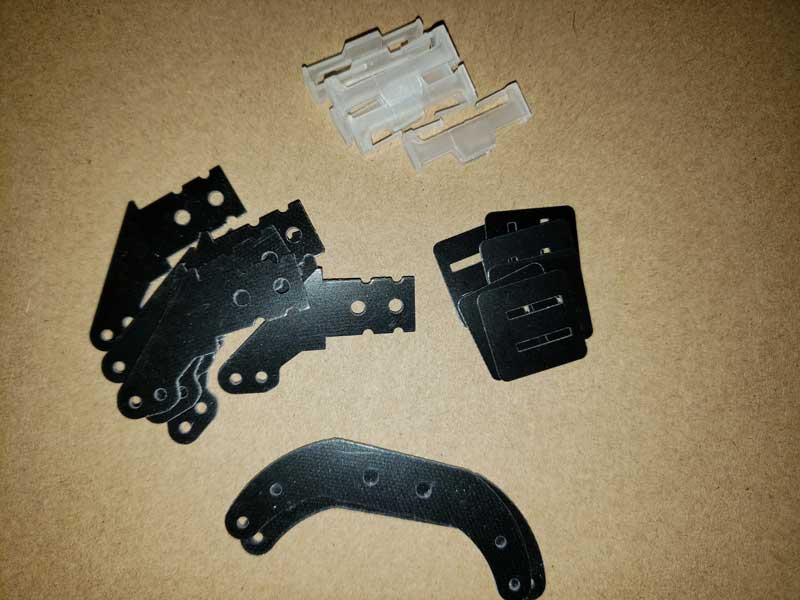

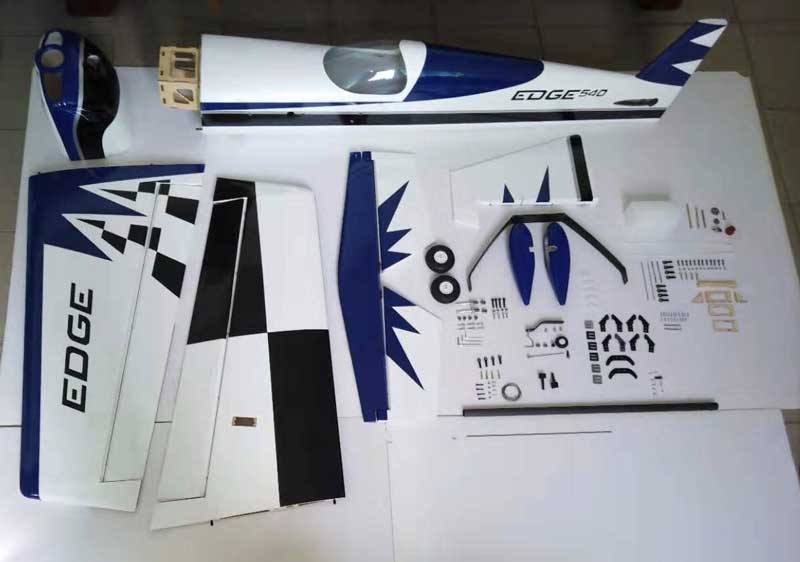

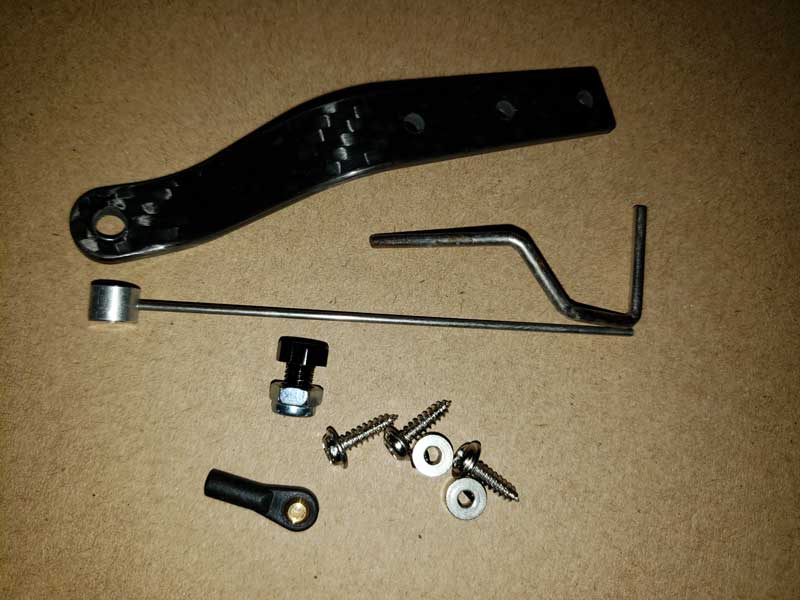

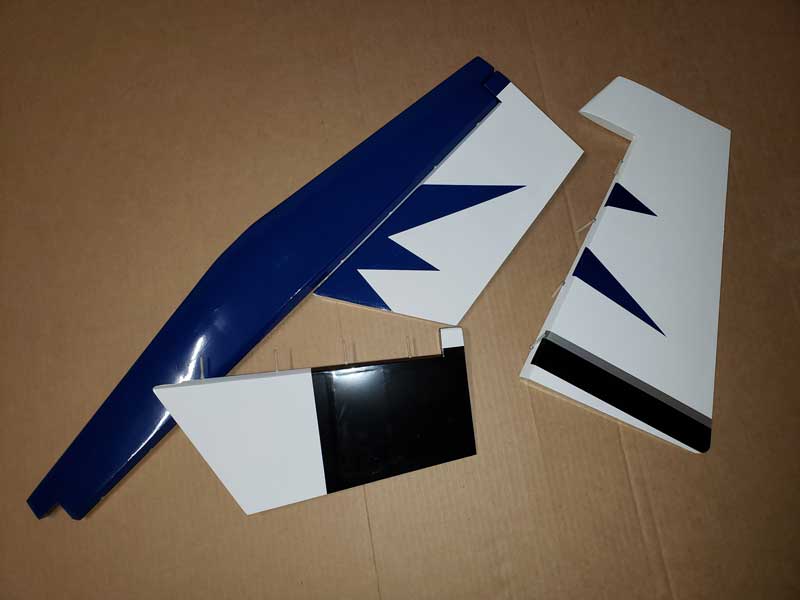

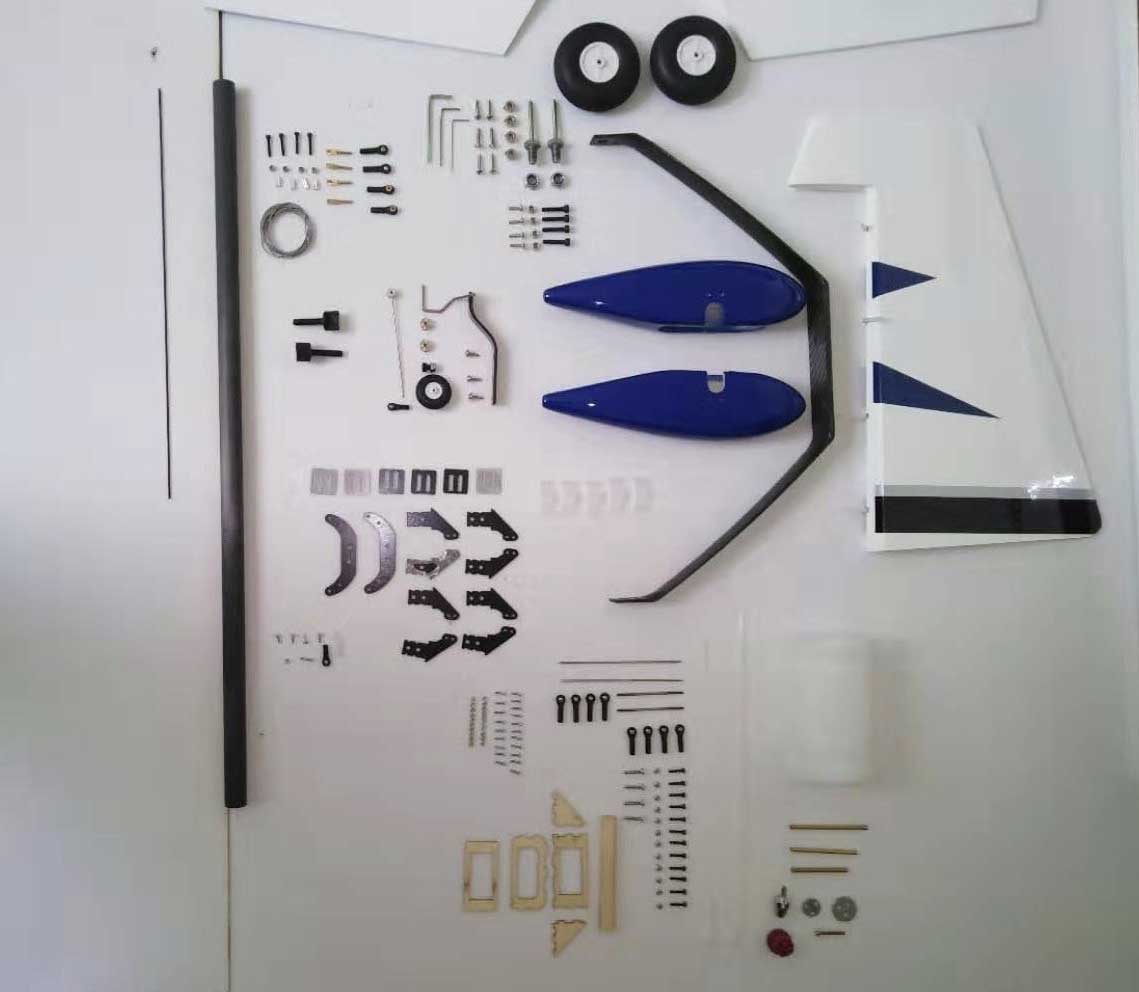

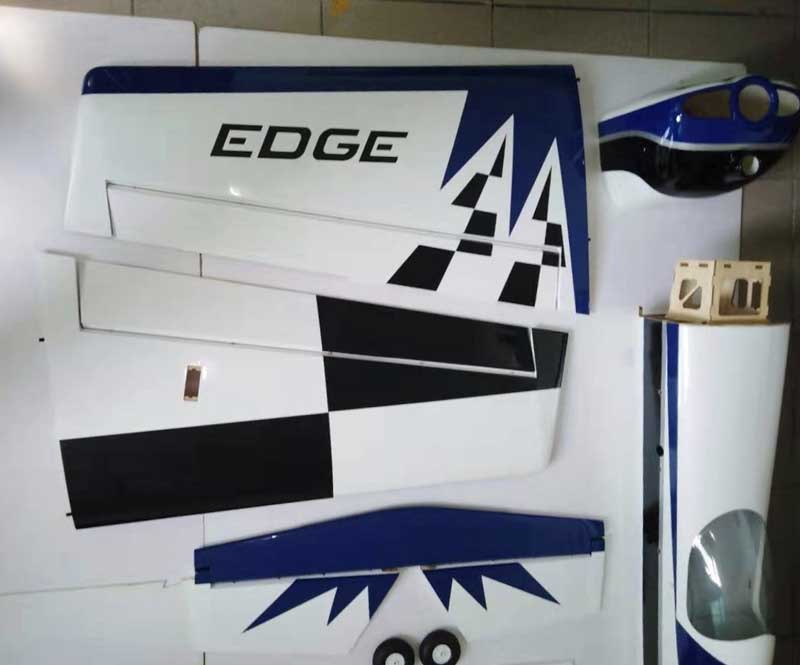

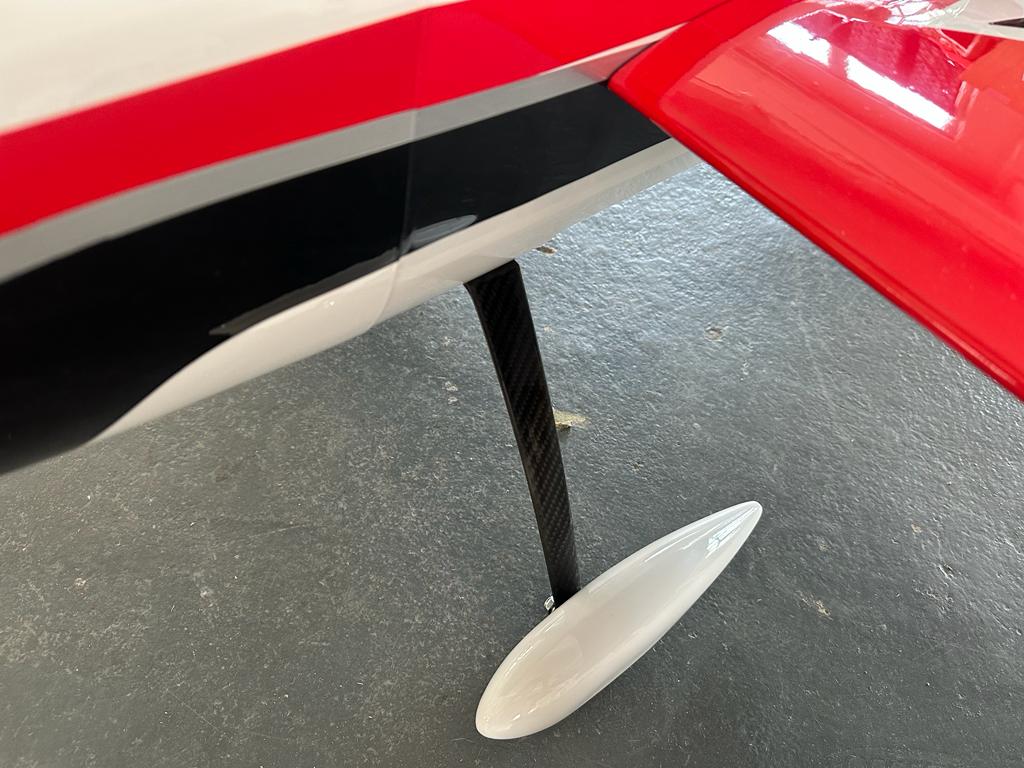

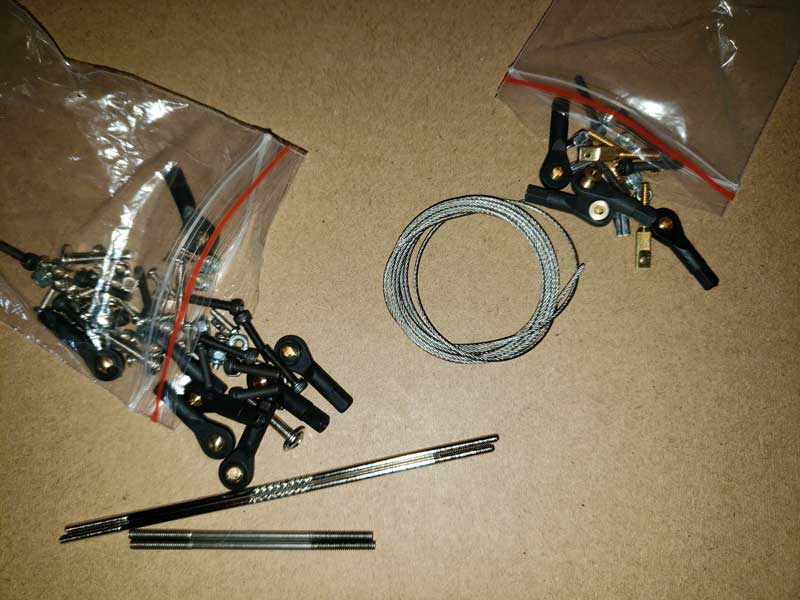

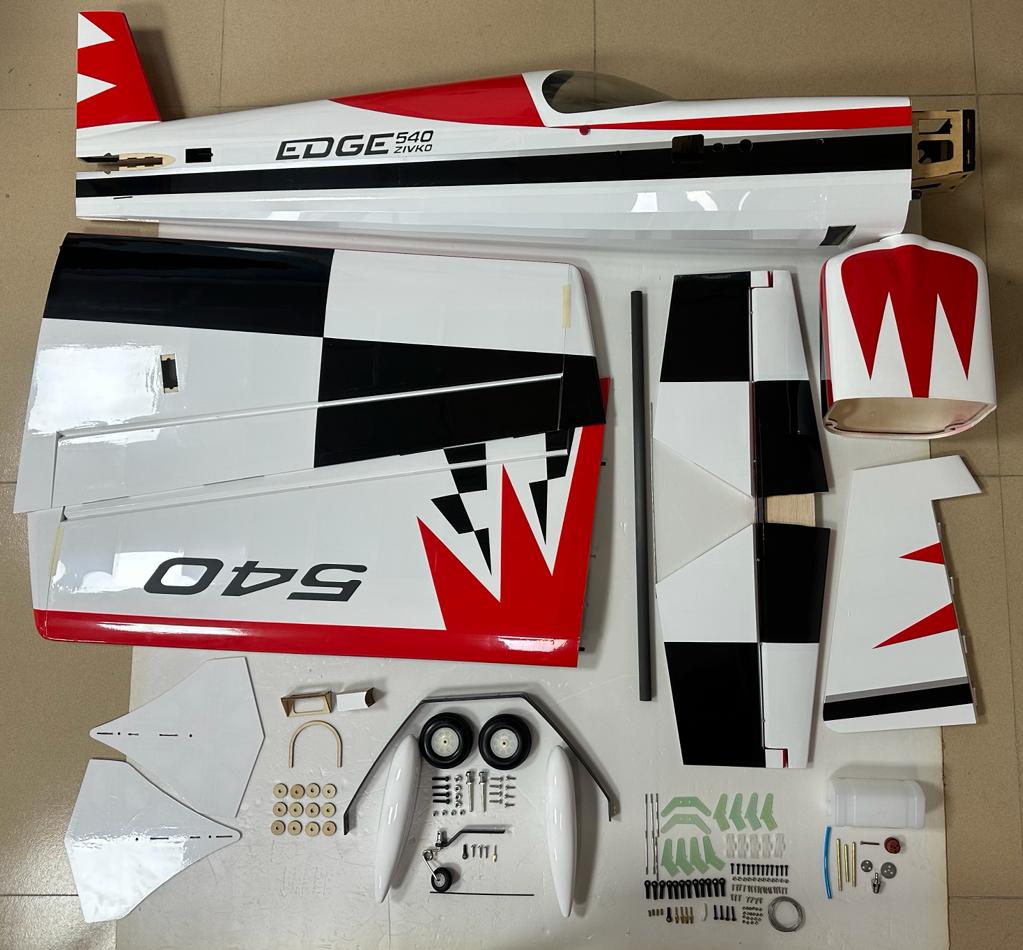

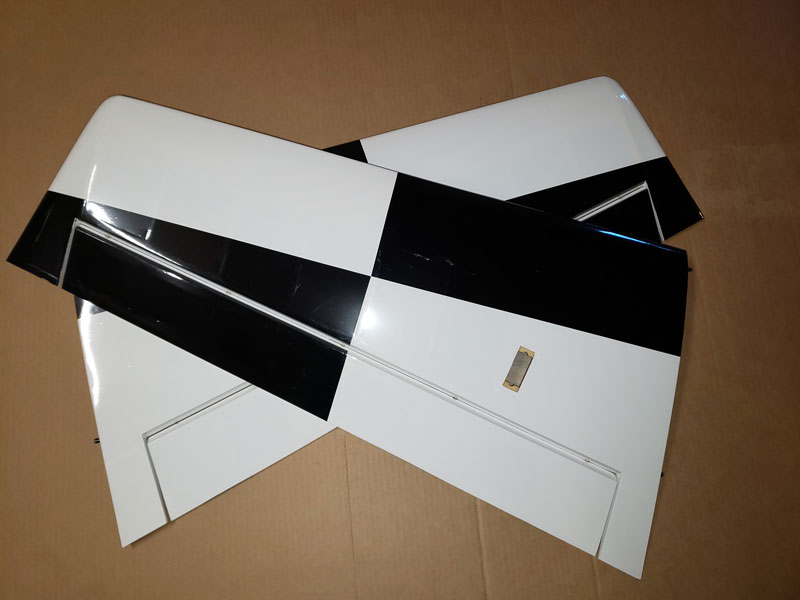

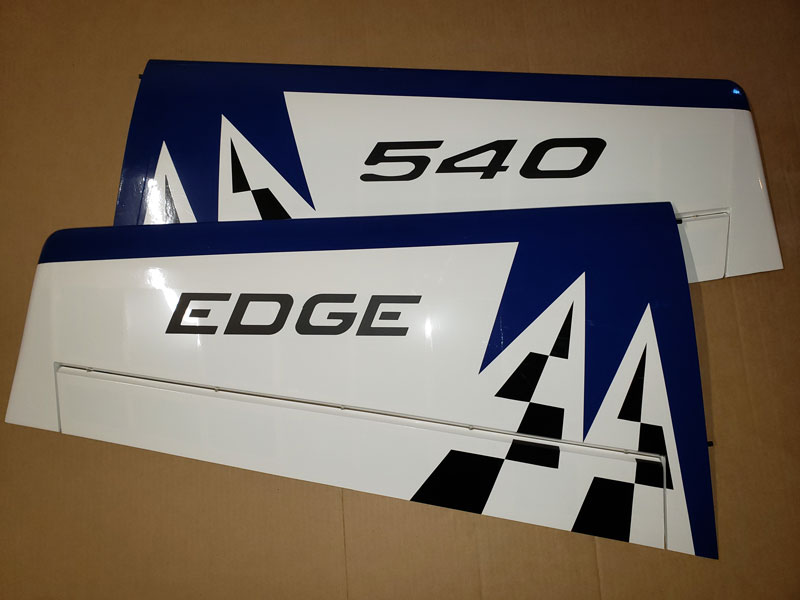

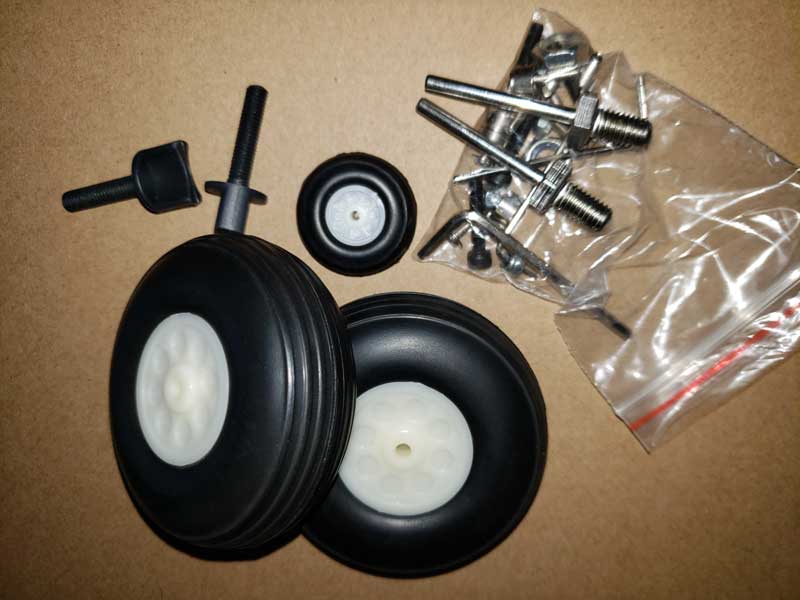

Latest Structure Awesome Quality Easy building Complete with accessories Low wing loading Light weight construction with high structural strength Excellent aerobatics and 3D performance Hardware includes:         Fiberglass horns         Ball linkage control system          One piece Carbon fiber landing gear         Advanced rubber wheels           SFG's and optional wing tips included Two pieces removable wings  Aerofoil tail wings  Carbon fiber wing tube Carbon fiber tail wheel assembly Carbon Support Stringers Fixed ring inside cowling for easy build Pre-Drilled but not glued hinges Single or dual elevator servo set up Powered by Electric Glow or Gasoline

Shipping info: If you want to pursue your own shipping, send a label from your account, or verify our shipping costs box is 55" x 19" x 11". Billable shipping weight is 16 pounds, ships from 80103. We do suggest shipping insured... just in case.

Spare Parts

Need parts: sales@milehighrc.com

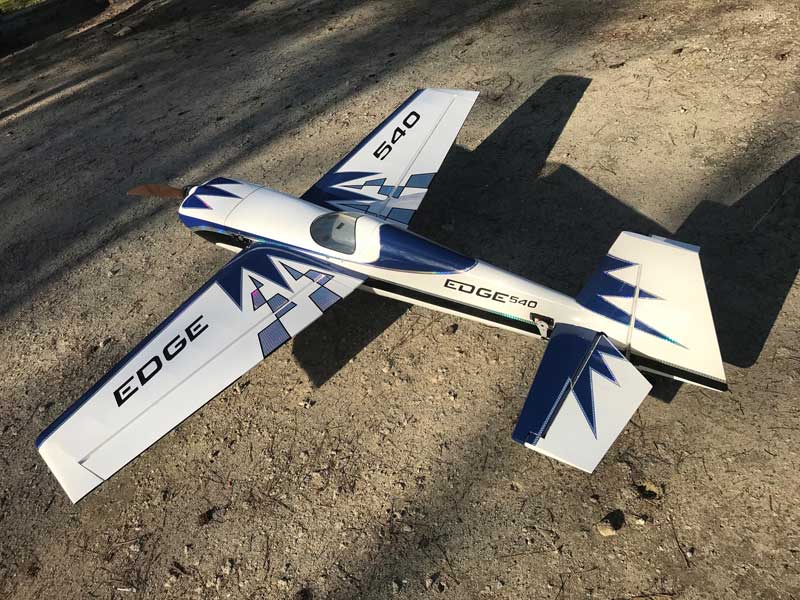

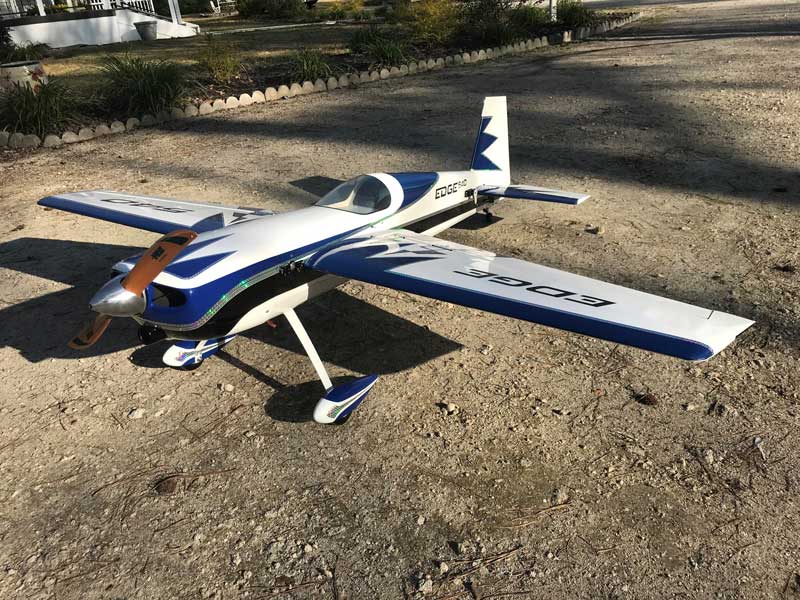

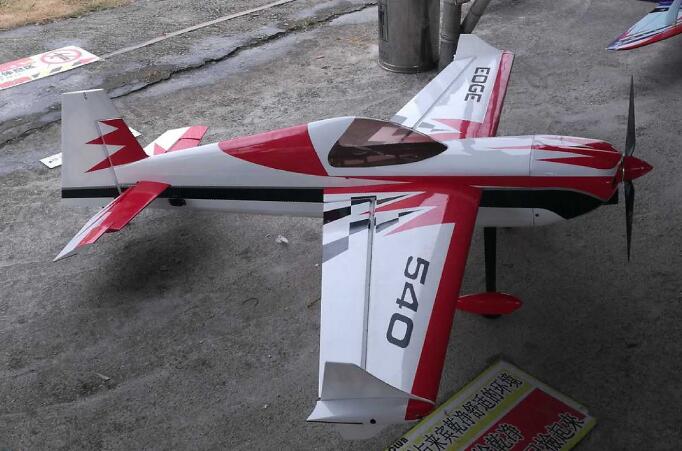

User Submitted Photos
