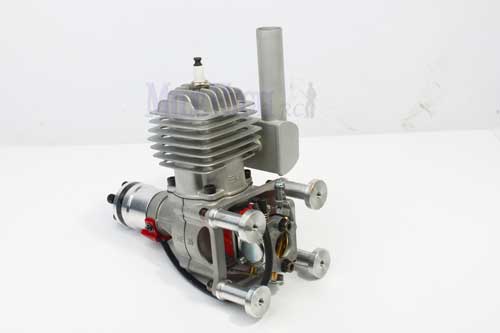

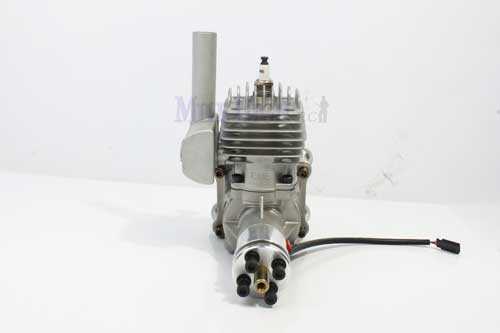

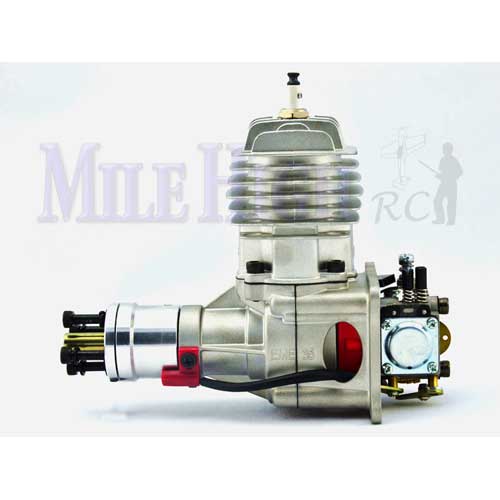

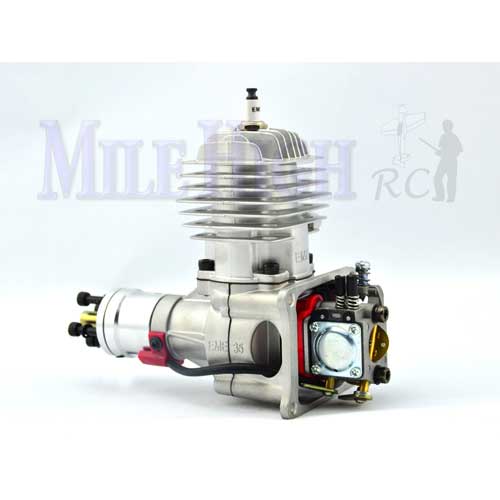

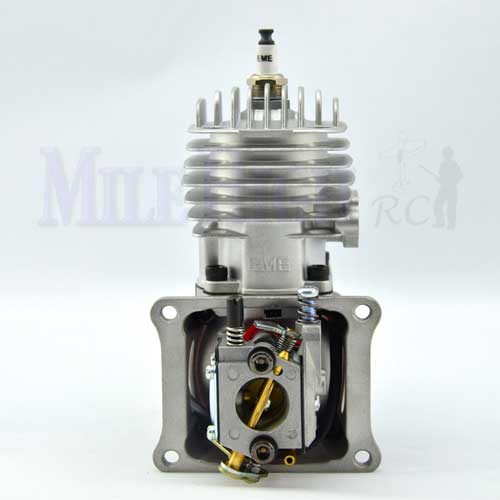

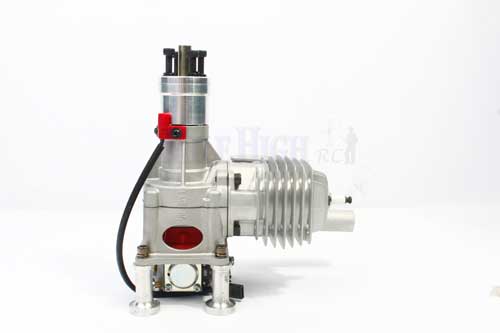

EME 35CC Gas Engine



A no hassle economical easy to use gas motor



18 Month Warranty - Serviced right here in the USA.



EME35CCEME 35CC35CC Gas motorEME35CC Gas

35CC EME motor35CCgas rc motorEME

EME35 better then DLE30milehighrcMHRC 35CC



Download the Manual - Here     Dimension Diagram - Here     Parts list Here



Now with Ceramic coated cylinders!! Angled Plugs!! Walbro Carb!!



Video Below



Specifications:
Displacement: 35 cc
Weight: 2.52 lb (includes muffler and ignition)
RPM Range: 1,550-7,500
Output: 3.6 hp @ 7,100 rpm

Thrust: 9kgf @ 200M (19.8 lbs) ~ 8.1kgf @ 2000m (17.8 lbs)
Requires: unleaded gasoline 91-93 octane, oil 1:30 - 1:35, ignition battery ( 6V-12V) & propeller (18x10, 19x10, 20x8)
Includes: electronic ignition, muffler, spark plug, gasket, steel bolts, machined aluminum standoffs, throttle arm
Suggested Propellers: 18x10, 19x8, 19x10 & 20x8

Technical Data:
Ignition Battery: 4.8-8.4V HV Ignition
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: CM6
Weight Breakdown: Engine: 33.86 oz (960 g); Muffler: 1.58 oz (45 g); Ignition: 4.9 oz (140g)

Ignition: Rcexl - High Voltage (6-12V)





Tech Notes:

 - Same foot print and the DLE 30/35.

 - Same exhaust port size and bolt spacing as the  DLE/SA 30/32/35. Most common mufflers are an exact fix.

 -No more shearing prop bolts. Same prop bolt pattern as the DLE/SA 30/32/35. The prop bolts are 5mm. So props and spinners will need to be chased with a bigger bit. Drill Jigs found Here



Seeking Dealers for the EME engine line.

Would you like to see EME engines at your local hobby shop or on-line vendor? Have them contact us.

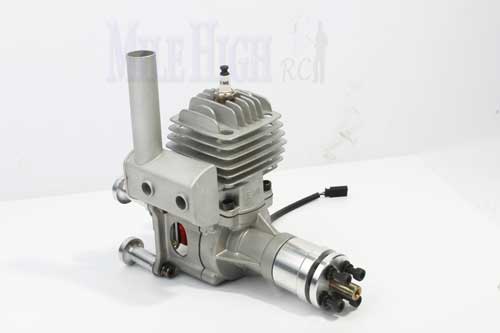

EME 35CC Gas Motor

Now with Ceramic coated cylinders!! Angled Plugs!! Walbro Carb!!

EME35 better then DLE30

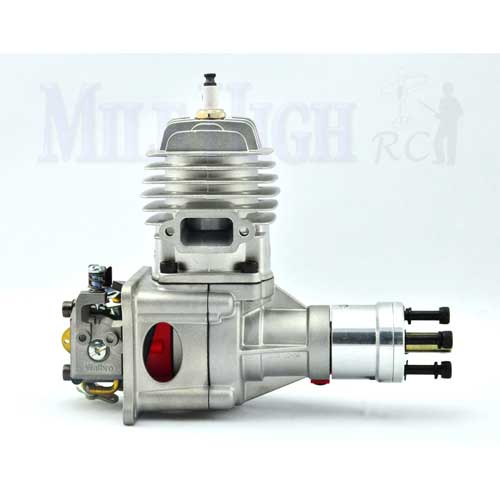

EME 35CC

Now with Ceramic coated cylinders and Walbro Carb!!

Free NGK  Spark Plug

$269.00

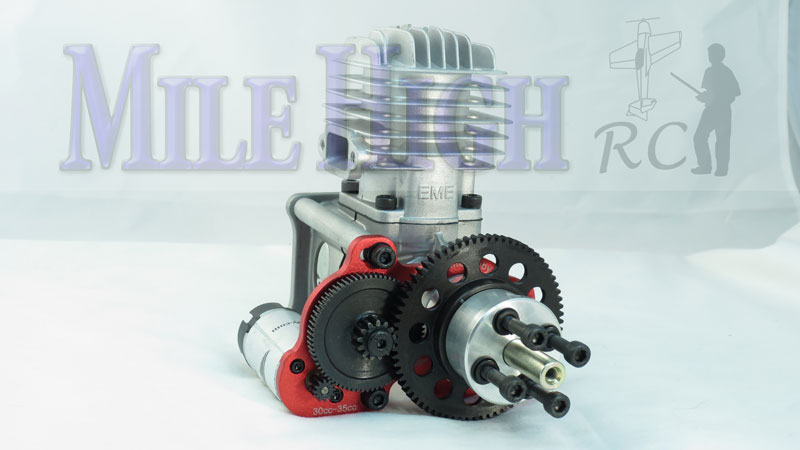

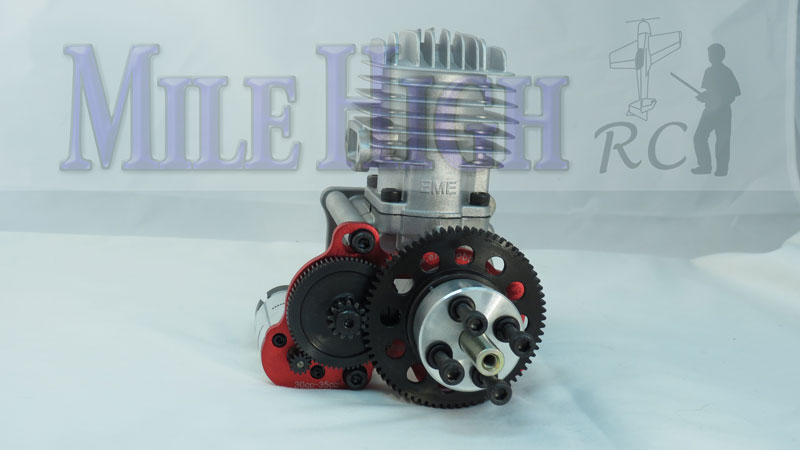

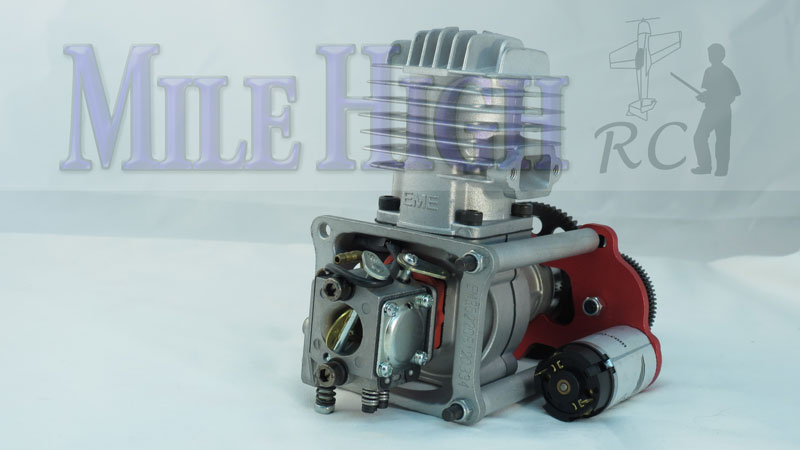

EME 35AS

Now with Ceramic coated cylinders!!

With Factory Installed Auto Starter

Free NGK  Spark Plug

$389.00

EME 35CCAS (Auto Starter) - Free NGK Plug

No Starter Instructions are included

Starter Controller is found here

 Video Below

We will price match any USA authorized dealer.



EME 35 Auto Start 35CC

EME 35cc Mile High RC

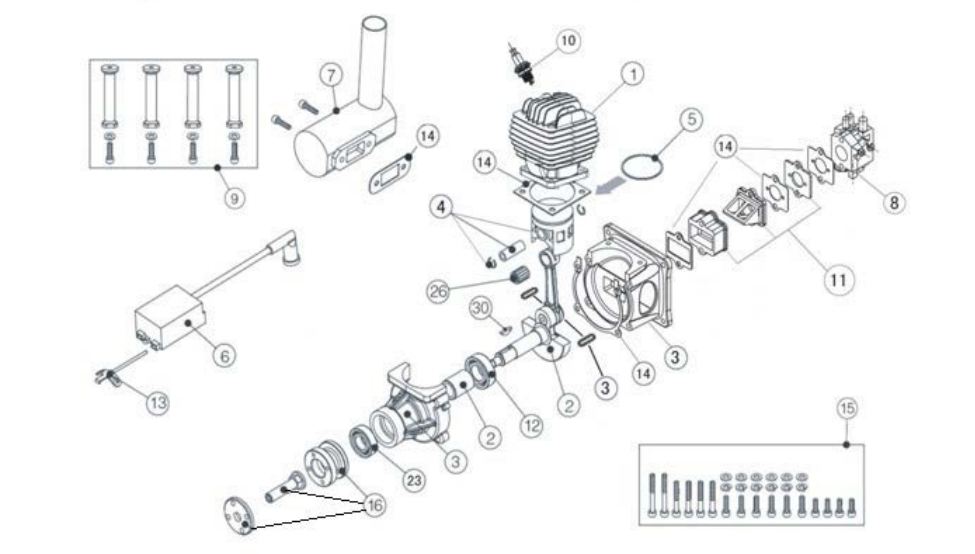

Parts list Here

EME 35 Parts

EME 35 Cylinder - $68.90

EME 35 Crankshaft - $42.44

EME 35 Crank Case - $41.12

EME 35 Piston - $15.83

EME 35 Piston Ring- $7.39

EME 35 Stock Muffler - $21.45

WT 664

Walbro WT-978 Carb - $48.00

EME 35 Standoffs - $18.07

EME 35 Reed Assembly - $18.64

EME 35 Main Bearing Set - $15.26

EME 35 Prop Hub - $18.13

EME 35 Woodruff Key - $1.87



EME 35 Gasket Set - $9.12

EME 35 Exhaust Gasket- $4.58

EME 35 Cylinder Gasket- $4.58



Other items for the EME 35

Need a Muffler?

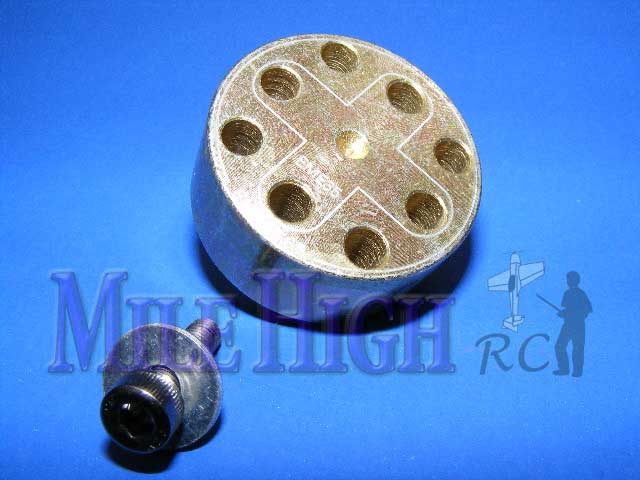

Prop Drill Guide

Need a Prop Drill Jig?

Need a Spinner?



















Mufflers For EME35 Can be found Here



EME35cc pitts muffler EME35CC Canister Muffler
