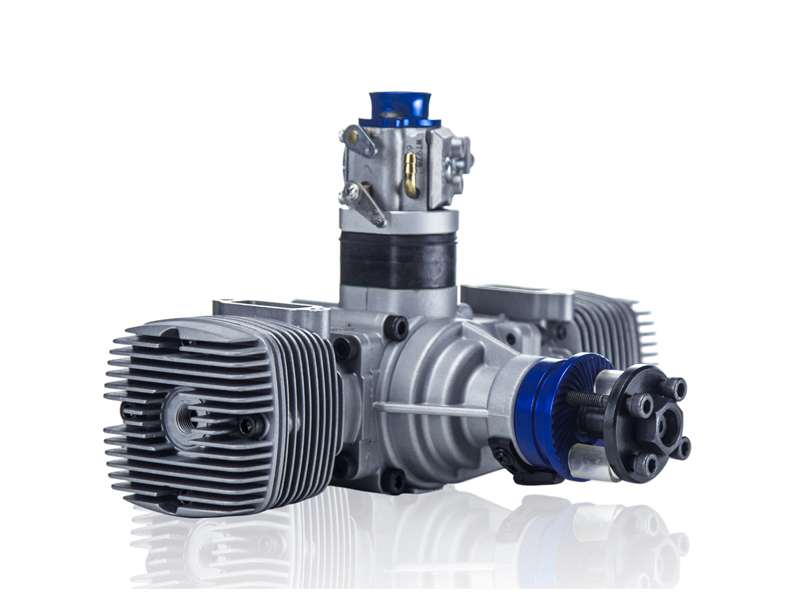

NGH GTT70 70cc 2-Stroke Gas Engine

NGH has been known for producing high-quality, purpose built gasoline engines. The GTT70 engine is a professional-grade small two-stroke gasoline engine built by NGH engineers for RC enthusiasts, beautiful appearance, light weight, stable performance and plenty of power.

NGH have been known for producing high-quality gasoline engines.GTT70 is a professional-grade two-stroke gasoline engine built by NGH engineers for RC enthusiasts, compact structure, beautiful appearance, stable performance and plenty of power!

GTT70 engine is a horizontally opposed twin-cylinder engine derived from GT35 engine. It is equipped with a radial mount, and there is the automatic timing angle capacitor discharge Double-cylinder synchronous ignition system customized for NGH by Rcxel. It has precision forged connecting rod with needle roller bearings, three high-quality deep groove ball bearings are assembled on the crankshaft.The cylinder liner is made of wear-resistant nodular cast iron, the tolerance of the bore in the cylinder is within 0.01mm, and the precision is much higher than the roundness tolerance of the inner hole of the aluminum alloy chrome-plated cylinder liner 0.03mm, aluminum alloy plating chromium cylinder liner in principle does not meet the Eu environmental regulations. The engine intake system adopts the crankshaft intake mode, which is more accurate than the reed valve intake mode in opening and closing time. Because the spring delay of the reed itself is different from the negative pressure of the crankcase, the intake time is not accurate. Optional surround exhaust pipe can effectively improve and reduce noise, and it is deeply high praised by European and American RC enthusiasts.

GTT70 is suitable for RC aircraft with takeoff weights of 10-15kg and the fixed-wing UAV with the same take-off weight. Equipped with NGH electric starter, it is suitable for take-off weight of 10-15kg vertical UAV.

GTT70 features

* Integrated welded single exit exhaust muffler, effectively improve and reduce noise

* Front Walbro carburetor, reliable operation and simple debugging

* CNC carved radial engine mount, more stable installation and less vibration

* Precision forged connecting rod with needle bearing

* Double nut locking output shaft

* RCEXL automatic timing synchronization ignition system, specially made for NGH

* RCEXL spark plug CM6

* High-quality bearings

All NGH Engines bought through Mile High RC or our dealers hold a 2 year warranty for materials and workmanship.

NGH engines bought from Mile High RC or its dealers are serviced in house here in Colorado.

Parts are a valuable and expensive resource. All parts are available but currently reserved for customers of Mile High RC and our dealers.

NGH GTT70 2-Stroke Gas Engine Only $428.00

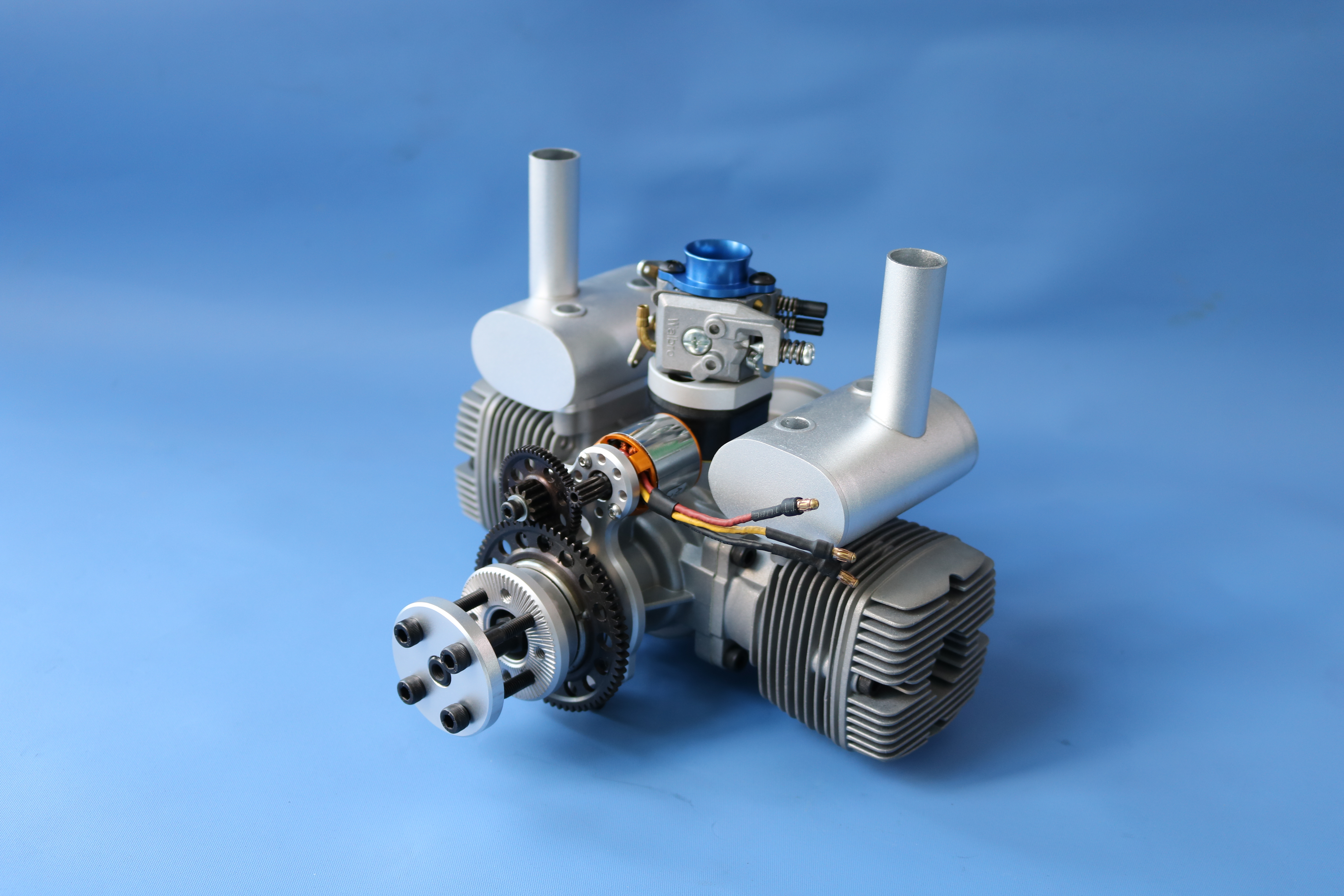

NGH GTT70 2-Stroke Gas Engine w/Brushless Starter System Only $566.00 Free Shipping - USA Only

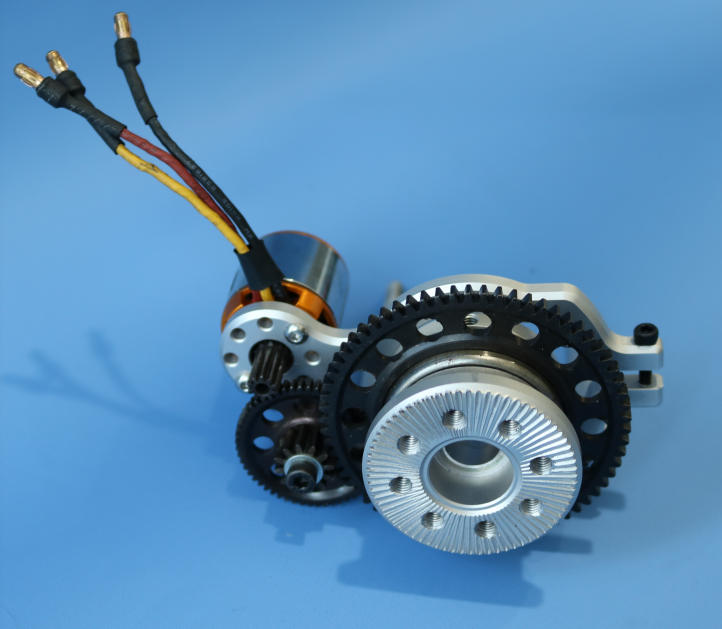

NGH 70cc Brushless Starter with ESC Starter fits only The NGH GTT70 Enigne does not fit anything else. No Instructions are included. $119.00
