NGH
GT25 25cc 2-Stroke Gas Engine
NGH has been known for producing high-quality,
purpose built gasoline engines. The GT25 engine is a
professional-grade small two-stroke gasoline engine built by NGH
engineers for RC enthusiasts, beautiful appearance, light weight,
stable performance and plenty of power.


The
internal diaphragm pump of the carburetor is driven by crank case
pressure, which can provide sufficient fuel whatever the
attitude of the aircraft and regardless of the tank position. This
also eliminated the need for a reed, one less thing. GT25 is
specially designed for ease of use and is suitable for 91-120 in
size but holds the power of a 120.
The
GT25 Pro incorporates the proven
solid phosphor bronze connecting rod, the phosphor bronze connecting
rod is more durable, and the wear resistance and durability far
exceed that of a high-quality needle roller connecting rod. The
cylinder liner is made of wear-resistant nodular cast iron, the
tolerance of the bore in the cylinder is within 0.01mm, and the
roundness tolerance of the inner hole of the aluminum alloy
chrome-plated cylinder liner is 0.03mm.
This
economical rail mount engine is the exact size and should be a drop
in for 91 - 120 in sizewhile having the power of a 120.
GT25
Product Features
*Front
Walbro carburetor, reliable operation and simple debugging/tuning
*
Lightweight design, powerful power output and excellent reliability
*Double
needle roller bearing CNC carved connecting rod
*Single
nut output shaft, you can choose a variety of propellers
*RCEXL
auto-advance micro-ignition system specially made for NGH
*High-quality
bearings
Specifications:
Displacement: 25.09 cc
Weight: Engine - 840g Muffler -
80g Ignition - 100g
RPM Range: 1600-11,000
Output: 2.7 hp @ 8,900 rpm
Requires: unleaded gasoline, oil, ignition battery
& propeller

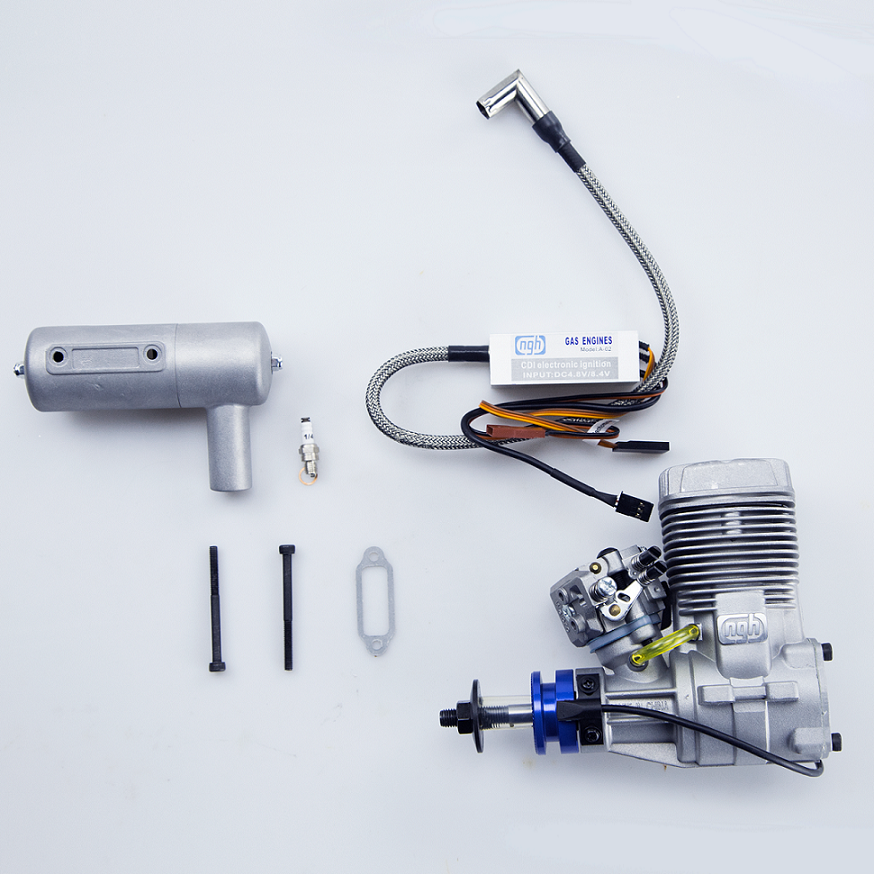

Includes: Engine, Ignition, Muffler, Spark Plug,
Exhaust Gaskets, Bolts, and Manual
Suggested Propellers: 15x10, 16x8, 16x10
|
Technical Data:
Bore and Stroke: 33.2(b) x 29mm (s)
Gas/Oil Mix: 25:1 Synthetic
Replacement Spark Plug: ME8 (1/4") or equivalent
Carb: Walbro (case
pumped)
Ignition: NGH (Made by Rcexl) 4.8 -
8.4 Volt |
All
NGH Engines bought through Mile High RC or our dealers hold a 2 year
warranty for materials and workmanship. NGH
engines bought from Mile High RC or its dealers are serviced in
house here in Colorado. Parts
are a valuable and expensive resource. All parts are available but
currently reserved for customers of Mile High RC and our dealers. At
only $218.00 this rail mount 2 stroke is a great value. You will
save before you fly.
NGH GT25 25cc 2-Stroke Gas
Engine
Only $218.00
Free Shipping - USA Only
|
