NGH
GT17 Pro 17cc 2-Stroke Gas Engine
NGH has been known for producing high-quality,
purpose built gasoline engines. The GT17-Pro engine is a
professional-grade small two-stroke gasoline engine built by NGH
engineers for RC enthusiasts, beautiful appearance, light weight,
stable performance and plenty of power.


GT17-Pro
is the second generation of the popular GT17 engine. New for 2022
this latest
version incorporates a new walbro. This addition brings an enigne
with better idel, faster transition, and over all smoother
operation, with more power. The internal diaphragm pump of the
carburetor is driven by crank case pressure, which can provide
sufficient fuel whatever the attitude of the aircraft and
regardless of the tank position. This also eliminated the need for a
reed, one less thing. GT17-Pro is specially designed for
ease of use and is suitable for .61-.91 glow in size but holds the
power of a .91.
Other
upgrades to the GT17 Pro are the solid
phosphor bronze connecting rod, the phosphor bronze connecting rod
is more durable, and the wear resistance and durability far
exceed that of a high-quality needle roller connecting rod. The
cylinder liner is made of wear-resistant nodular cast iron, the
tolerance of the bore in the cylinder is within 0.01mm, and the
roundness tolerance of the inner hole of the aluminum alloy
chrome-plated cylinder liner is 0.03mm.
This
economical rail mount engine is the exact size and should be a drop
in for .61-.91 glow while having the power of a .91.
Specifications:
Displacement: 16.91cc
Weight: Engine - 690g Exhaust -
80g Ignition - 100g
RPM Range: 2000-9,000
Output:
2.1 hp @ 9,200 rpm
Requires: unleaded gasoline, oil, ignition battery
& propeller

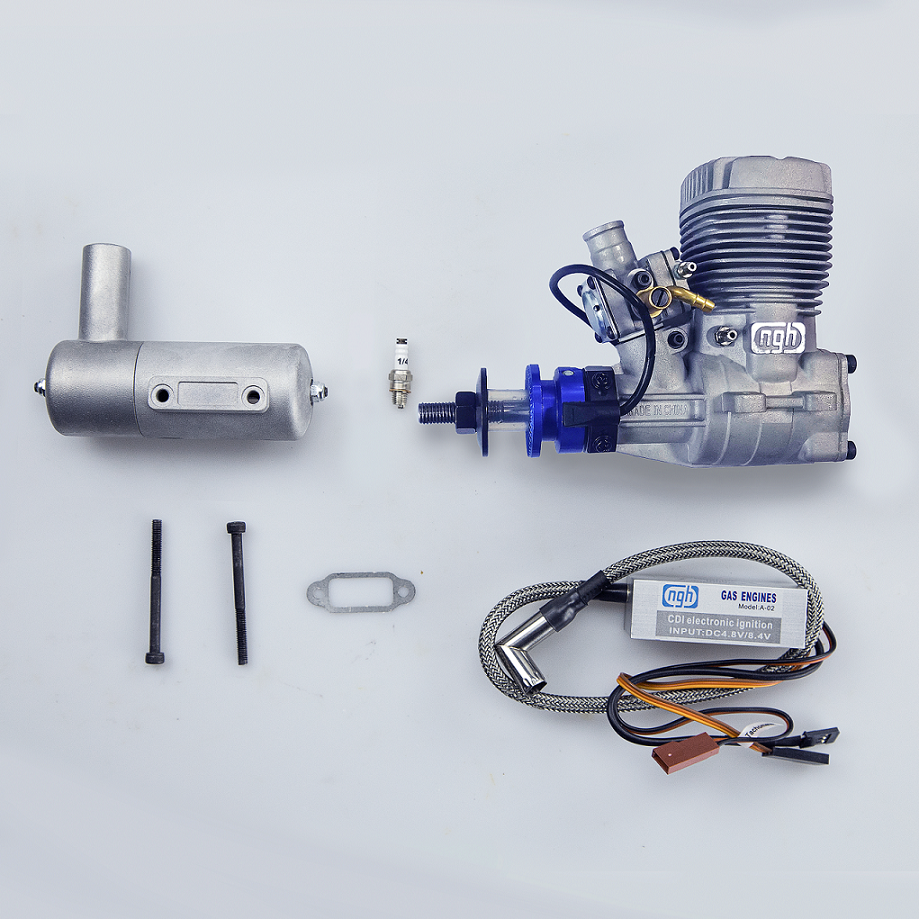

Includes: Engine, Ignition, Muffler, Spark Plug,
Exhaust Gaskets, Bolts, and Manual
Suggested Propellers: 14x8, 15x8, 16x6, 16x8
|
Technical Data:
Bore and Stroke: 29(b) x 25.6mm (s)
Gas/Oil Mix:
25:1 Synthetic
Replacement Spark Plug: ME8 (1/4") or equivalent
Carb: Walbro (case
pumped)
Ignition: NGH (Made by Rcexl) 4.8 -
8.4 Volt |
All
NGH Engines bought through Mile High RC or our dealers hold a 2 year
warranty for materials and workmanship. NGH
engines bought from Mile High RC or its dealers are serviced in
house here in Colorado. Parts
are a valuable and expensive resource. All parts are available but
currently reserved for customers of Mile High RC and our dealers.
At
only $208.00 this rail mount 2 stroke is a great value. You will
save before you finish your first gallon of gas.
NGH GT17 Pro 17cc 2-Stroke Gas
Engine
Only
$208.00 Free Shipping - USA Only
|
