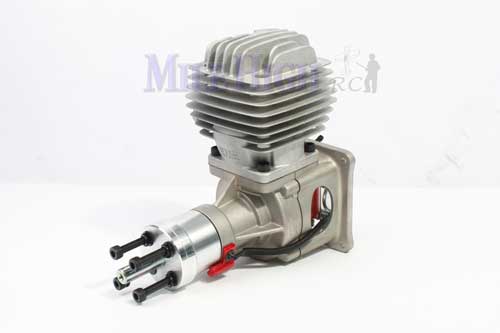

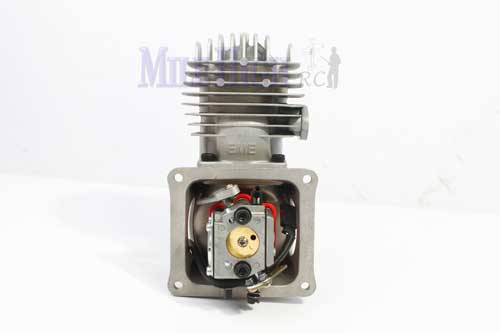

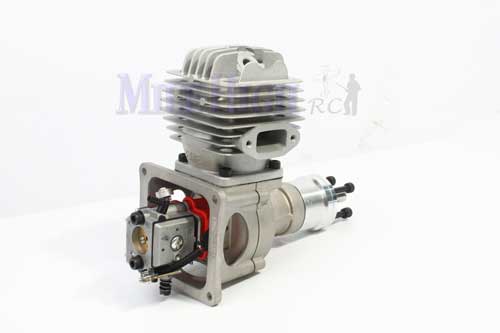

EME 60CC Gas Engine



Mile High RC is excited to offer yet another affordable engine for the RC market. The EME line incorporates 100% reliable parts, 6-12V RCEXL ignition (not a copy), Walbro carb, and bearings made in Japan (not a copy). Produced with modern CNC and casting production methods. Slightly lighter then other motors in its class the EME60 weighs only 1710 grams including the muffle and ignition, that is just slightly more then a DLE55. The EME 60CC  is worth a try to replace an old tired motor or for your next project.


Like the rest of the EME line the factory pays close attention to timing on this motor, resulting in noticeably better general running and great smooth operation. EME has recognized the short coming of other motor lines and really steeped up quality. For example a genuine Walbro carb not a copy, look at other popular motors in this class they use a copy. Make sure to check out some of the subtle but effective nuances incorporated into this motor. Such as a longer throttle arm on the carb resulting in smother operation and saves servo wear. The mount design allows for shorter stand off's resulting in less vibration. Even the packing material was considered. No more blowing foam out of the cylinder and wondering of you got it all out. Are you aware of the reed block mod on the popular motors, to get smooth air in to the engine? EME is and they designed the reed block in a manner to allow smooth clean air flow.





EME55V2







Download the Manual - Here     Dimension Diagram - Here

Prop Drill Guide (same as the DLE55) Here



Seeking Dealers for the EME engine line.

Would you like to see EME engines at your local hobby shop or on-line vendor? Have them contact us.



EME 60CC

EME 60CC

$349.00 - Free NGK Plug

In Stock

EME 60 Auto Start

EME 60CC

With Factory Installed Auto Starter

 Includes Free NGK CM6 Plug

$459.00 Sale price $439.00

Starter Controller is found here





We will meet or Beat any other Authorized dealers price (including shipping).



Mile High RC customers. Enjoy after the sale service.

Mile High RC offers cost on parts +10% with no labor charge to fix any after warranty issues or crash damage.



Need a prop drill guide?

Need a Canister or Pitts?

Add a Yak 55M

Add a Sbach







Specifications:
Displacement: 60 cc
Weight: 3.7 lb. (1710g) Engine - 3.06lb (1390g), Muffler - .39lb (180g), Ignition - .3lb (140g)
RPM Range: 1,350-7,500
Output: 6.2 hp @ 7,200 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs
Suggested Propellers: 23x10, 24x8, 24x10 (3-blade: 21x12, 22x10) - Same prop bolt pattern as the DLE55


Technical Data:
Ignition Battery: 6-12V (3-cell lipo is said to be good but not suggested)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1 ~ 35:1
Replacement Spark Plug: NGK CM6 or equivalent

Ignition: Rcexl

Carb: Walbro








Full parts are available here are a few prices.



Crankshaft - $48.00

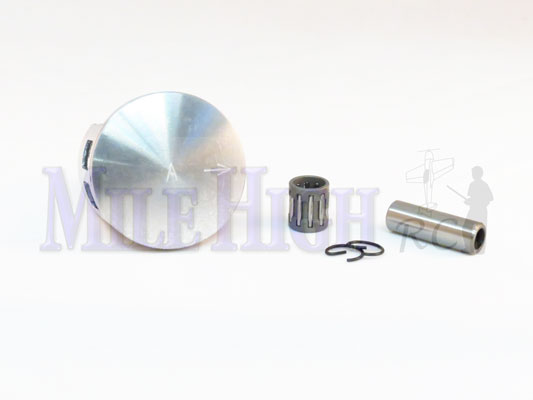

Piston, Pin, & Bearing - $18.20

EME 60 Carb - $51.00

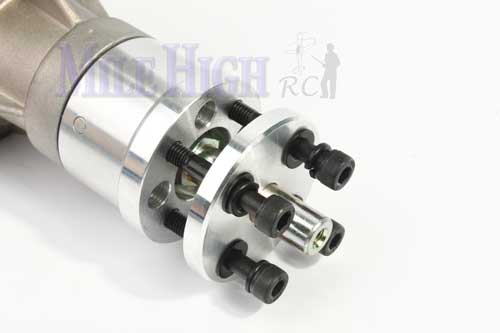

Prop Hub - $26.00

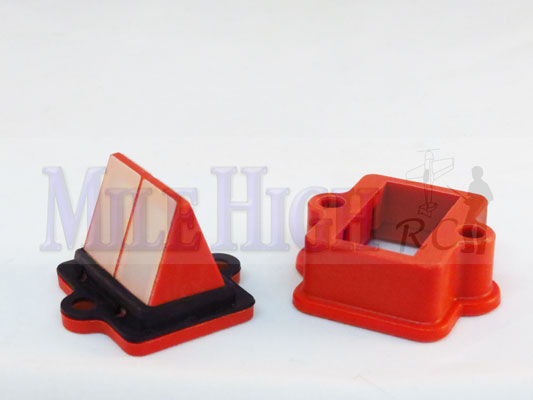

Reed Block - $18.00

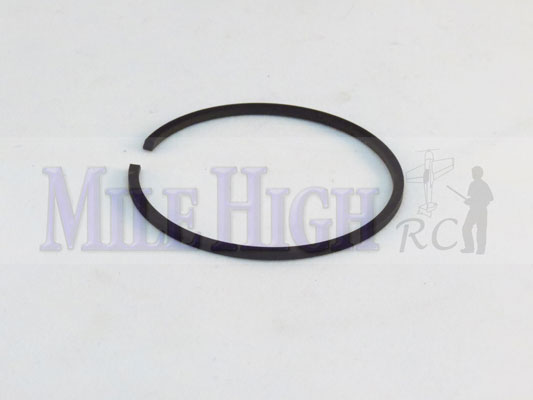

Piston Ring - $7.20

Case - $77.00

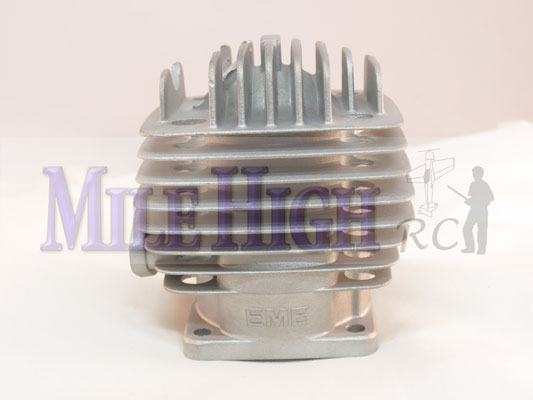

Cylinder - $88.00

Gasket Set - $9.00

Muffler - $36.00

Standoffs -$21.36

Woodruff Key - $1.20



All EME motors come with a 18 month Limited warranty. But with Mile High RC motors if your engine is DOA we replace the entire unit. Every nut, bolt, washer, even the ignition gets replaced. After the warranty term or for non-warranted repairs such as a crash we will service your motor for cost of parts + 10% (no labor charge) + return shipping









All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
