Servo Power Boxes / Power Expanders






Please note comes with XT60 Plugs not Deans

Power Expander ECO #2101

$38.00

Box 2101 features:

  Eight channels for input, and sixteen channels for output.(every one channel input with two channels output )

  Three led display the distribution board’s working states

  Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.

  Input / output power is communicated directly, so the input voltage equal to the steering gear and receiver power supply voltage, simply use the different voltage values of the battery can be adapted to a variety of high and low voltage actuator and receiver.

  Special place is designed for receiver to avoid the accidental from bombing damage in receiver.

  Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.



Technology parameters:

  Input voltage: 4.8V-12.6V

  Current: 0-20A

  Size:116 * 68 * 13mm

  Weight: 70g



Please note comes with XT60 Plugs not Deans

Power Expander BEC #2104

$74.00

Box 2104 features:

-   Double power input to improve the stability of power supply

-   Integrated switch is secure and stabile

-   Nine channels for input, and sixteen channels for output.(every one channel input with two channels output ), one channel CDI remote flameout switch.

-   Integrated CDI remote flameout switch, making flying safer, Independent CDI power supply socket. Receiver power is completely separate from the CDI power.

-   Integrated 20Amp linear BEC (Max:30A) provides sufficient current to your servos.

-   Adjustable 4.8-9.7V output voltage.

-   Independent 5V linear regulator which provide a separate pure working power supply to the receiver.

-   Five led lights display the distribution board’s working status.

Technology parameters:

   Input voltage: 6-13V

   Adjustable Output voltage : 4.8-9 .7 V (factory voltage is 5.2V)

   Current, :0-20A

   Size:116 * 88 * 13mm

   Weight: 80g

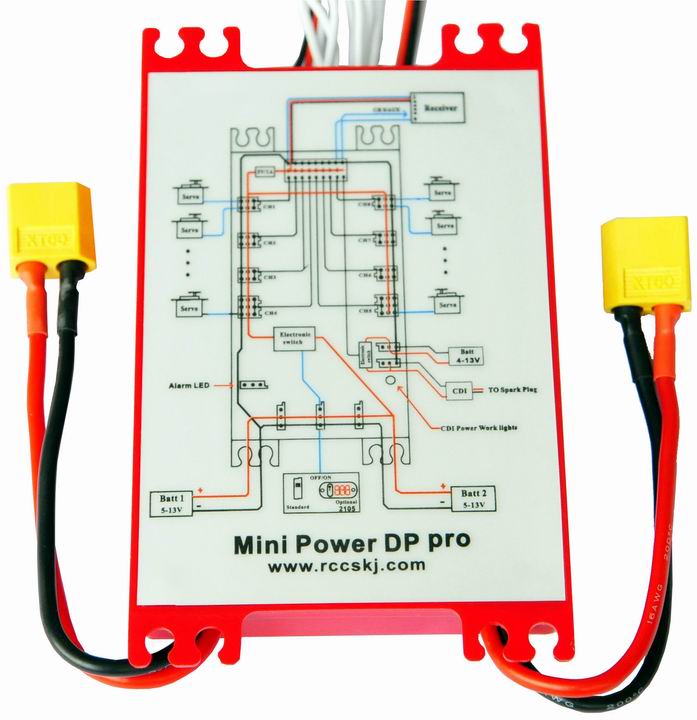

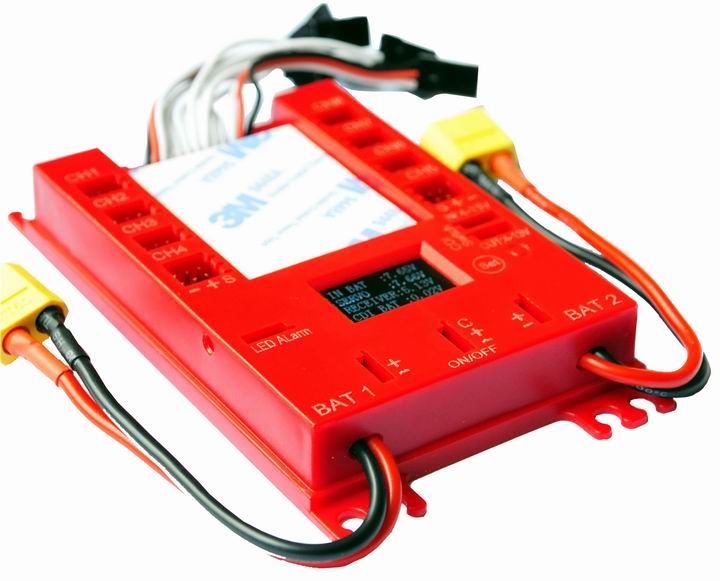

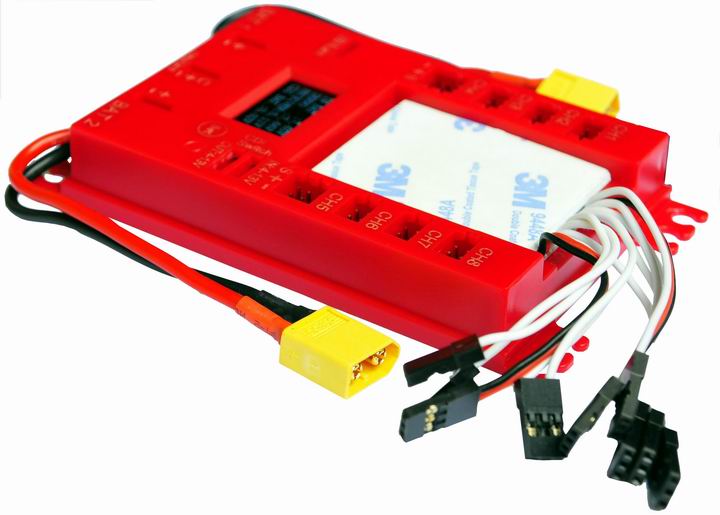

Power Box Pro #4104

$83.00

Power Box Pro 4104:

- Dual power inputs effectively improve supply reliability.

- Integrated switch is secure and stabile

- LED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.

-  You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)

-  9-channel inputs, 16 servo output.

-  Built in CDI remote flameout switch, making flying safer.

-  Batteries and steering input interfaces directly connected, the input voltage is equal to the supply voltage servos, just use batteries of different voltage values ​​to adapt to high voltage servos.

-  Independent 5V linear regulator provides a separate pure working power supply to the receiver.

-  Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.

Technology parameters:

  Input Voltage:  4.8-13V

  Output voltage :  4.8-13V

  Current : 0-20A

  Size: 122 * 72 * 18mm

  Weight: 80g

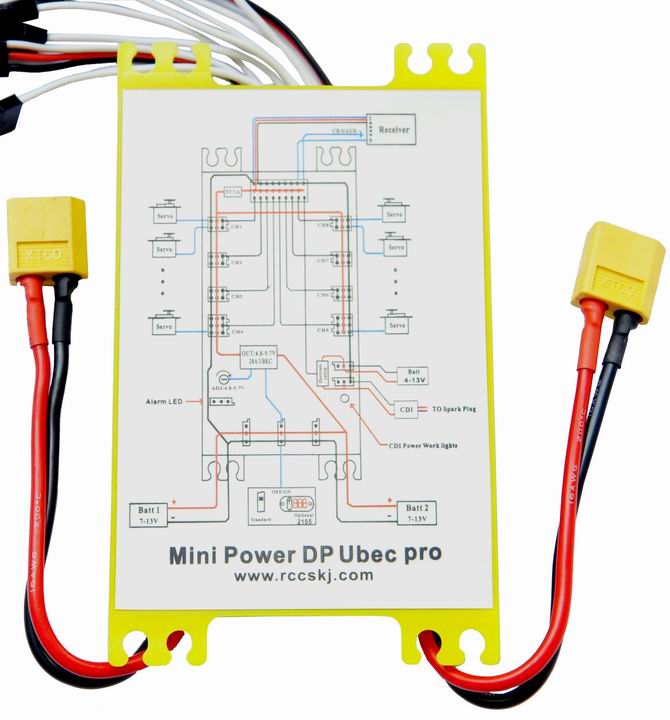

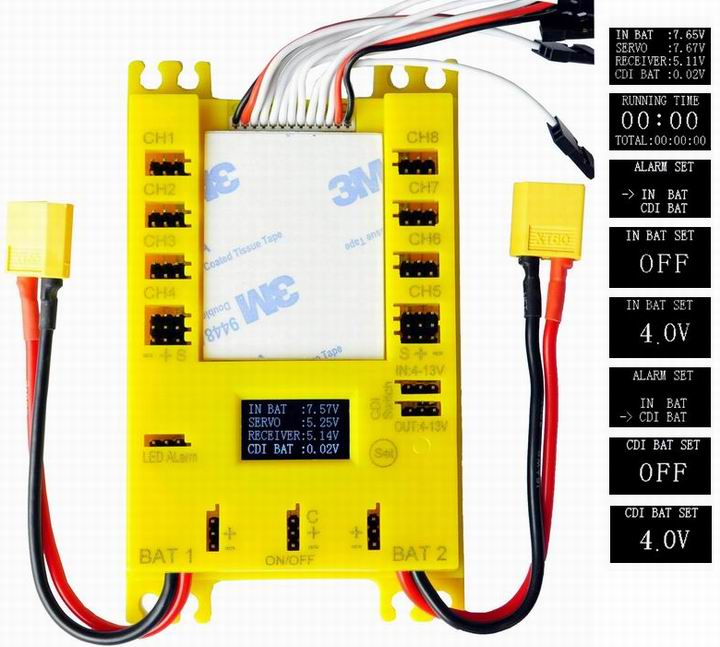

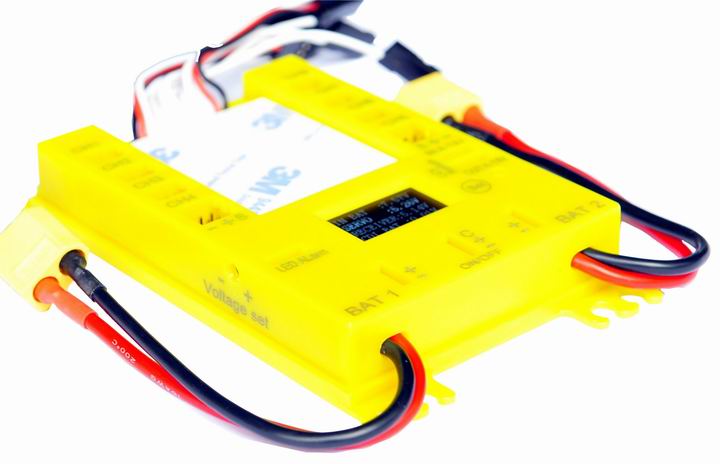

Power Box UBEC Pro #4105

$95.00

Power Box Pro UBEC 4105

-  Dual power inputs effectively improve supply reliability.

Integrated switch is secure and stabile

-  LED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.

-  You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)

-  9-channel inputs, 16 servo output.

-  Built-CDI remote flameout switch, making flying safer.

-  Built-20AUBEC (Max: 30A), providing ample work for the servo currents.

-  4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.

-  Independent 5V linear regulator which provide a separate pure working power supply to the receiver.

-  Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.

Technology parameters:

  Input Voltage:  7-13V

  Output voltage :  4.8-9 .7 V (factory voltage is 5.2V)

  Current : 0-20A

  Size: 122 * 72 * 18mm

  Weight: 80g

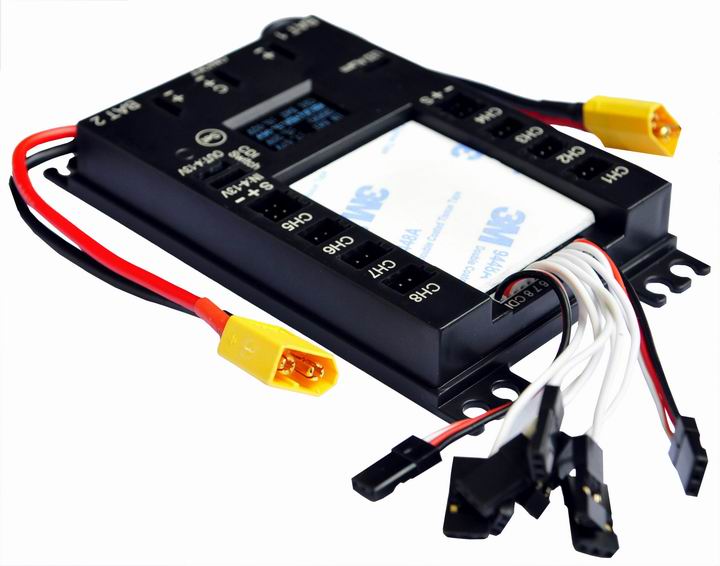

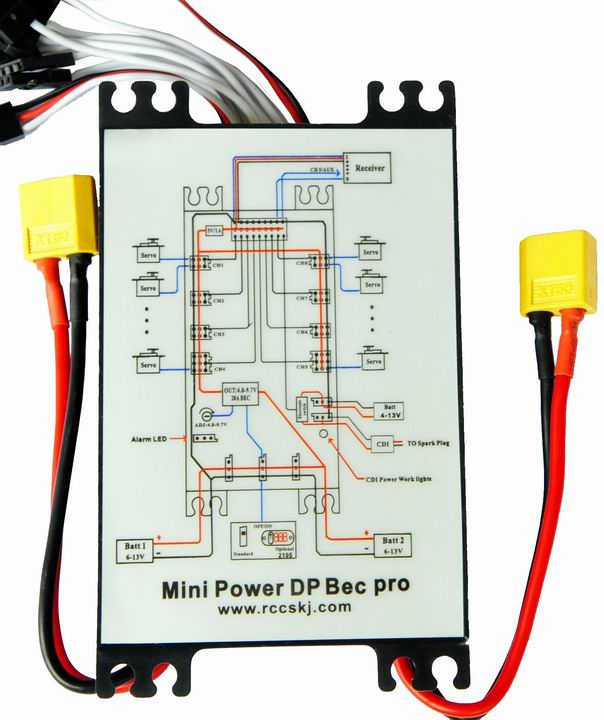

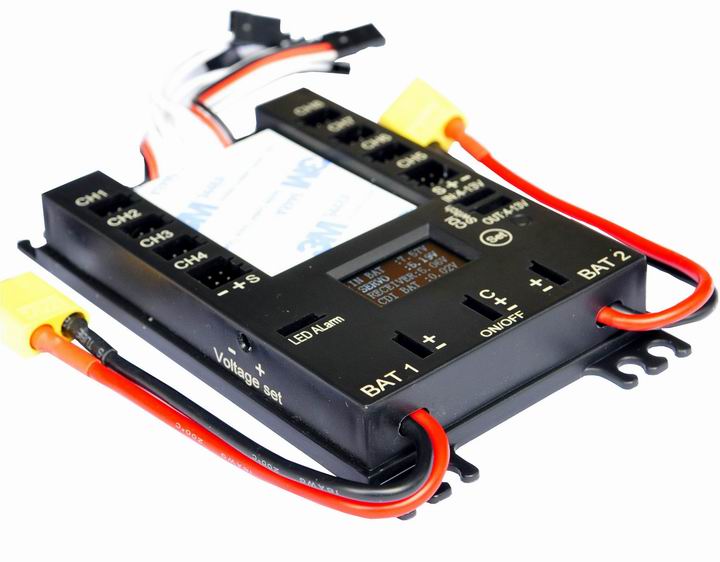

Power Box BEC Pro #4106

$105.00

Power Box BEC Pro #4106

-  Dual power inputs effectively improve supply reliability.

-  Integrated switch is secure and stabile

-  LED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.

-  You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)

-  9-channel inputs, 16 servo output.

-  Built-CDI remote flameout switch, making flying safer.

-  Built-20A BEC (Max: 30A), providing ample work for the servo currents.

-  4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.

-  Independent 5V linear regulator which provide a separate pure working power supply to the receiver.

-  Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.

Technology parameters:

  Input Voltage:  6-13V

  Output voltage :  4.8-9 .7 V (factory voltage is 5.2V)

  Current : 0-20A

  Size: 122 * 72 * 18mm

  Weight: 80g

More Power Boxes Coming Soon










All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
