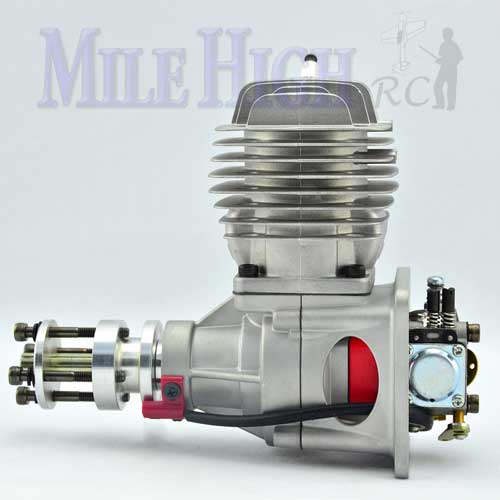

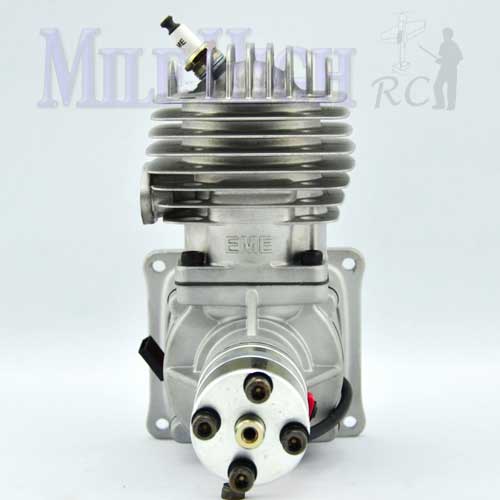

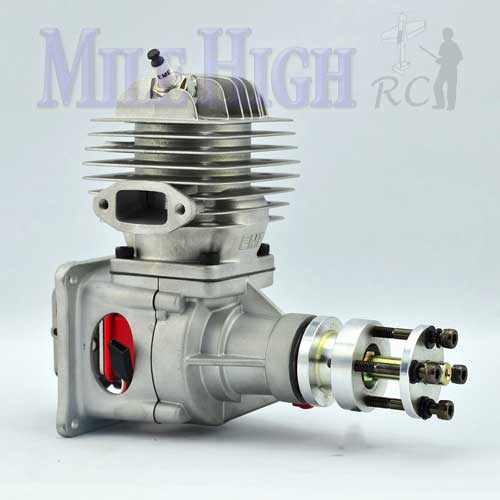

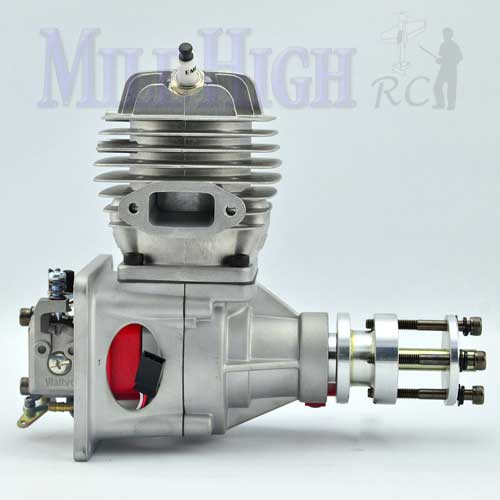

EME 55CC V2 Gas Engine



Mile High RC is excited to offer yet another affordable engine for the 50CC class of motors. We have extensively flown this motor having one of the first production motors out last another popular motor in its class and full production versions also being reliable not just in use but not finicky to tune. Spend more time flying and less time tuning. The EME incorporates 100% reliable parts, uses RCEXL CM6 High Voltage ignition (not a copy), and bearings made in Japan (not a copy), parts such as mufflers for the popular DLE / DL lines will fit with no mods. Produced with modern CNC and casting production methods. Slightly lighter then other motors in its class the EME55 is worth a try to replace an old tired motor or for your next project.


Video Below



EME55 V2 is the easiest engine for plug and play. The factories attention to timing on this motor is outstanding and very noticeable, resulting in noticeably better general running and great smooth operation. EME has recognized the short coming of other motor lines and really steeped up quality. Make sure to check out some of the subtle but effective nuances incorporated into this motor. Such as a longer throttle arm on the carb resulting in smother operation and saves servo wear. The mount design allows for shorter stand off's resulting in less vibration, less stress on servos and other components. Are you aware of the reed block mod on the popular China motors, to get smooth air in to the engine? EME is and they designed the reed block in a manner to allow smooth clean air flow. We replaced 3 of our 4 DLE's with the EME and cannot be happier with our performance at our elevation. 1st tank power for us was the same or one one case significantly better then the well broke in motors they replaced. Like some of our brushless motors we wish we were at lower elevation to feel the true power of this motor.







EME55V2

EME 55 V2Mile High RC55CC Gas Motor

EME 55 Gas MotorEME55EME55CC





Download the Manual - Here

Dimension Diagram - Here



Seeking Dealers for the EME engine line.

Would you like to see EME engines at your local hobby shop or on-line vendor? Have them contact us.

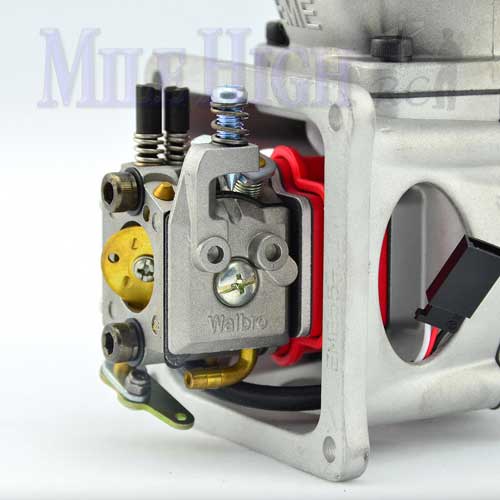

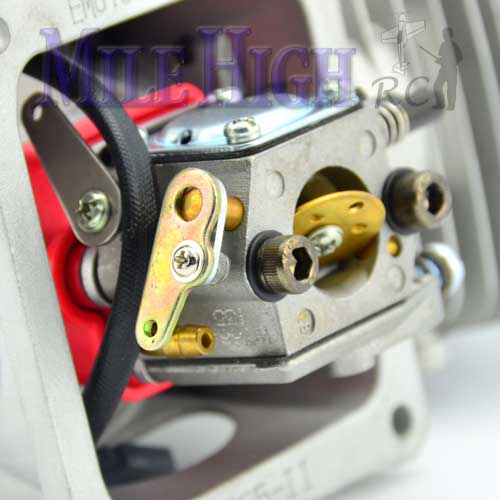

Now with HV Ignition and Walbro Carb



EME 55V2

EME 55CC V2

$309.00



EME 55CC V2

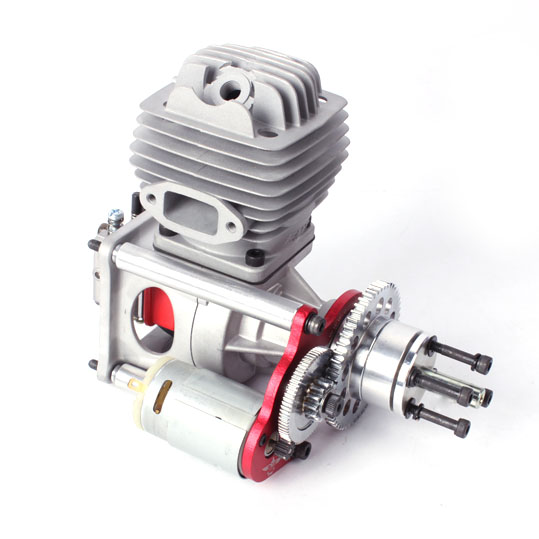

With Auto Starter (Note gears are upgraded)

$349.00

Arriving Aprox 9/12 - Free Shipping on Pre-orders

Starter Controller is found here



Starter Controller is found here



We will meet or Beat any other Authorized dealers price (including shipping).



Mile High RC customers. Enjoy after the sale service.

Mile High RC offers cost on parts +10% with no labor charge to fix any after warranty issues or crash damage.



We will price match any USA authorized dealer.





Specifications:
Displacement: 55.6 cc (3.392 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.4 lb (Engine - 2.8lb, Muffler - .22lb, Ignition - .26lb)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 22x8, 22x10, 23x8 & 23x10


Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 or equivalent
Weights (Individual): Engine: 47.6 oz (1,310 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)

Ignition: Rcexl

Carb: EME carb. Those wanting to put a Walbro on will need a WT-664A







Add Electric Start to your EME55 / EME60 /DLE 55



More info Here







Full parts are available here are a few prices.

Parts also fit the DLE 55
Cylinder - $54.60 Crankshaft - $31.10 Case - $53.20 Piston - $14.00
Muffler - $28.00 Reed Block - $11.20 Crank Bearing - $5.60 (each) Prop Adaptor - $12.60
Needle Bearing - $1.40 Standoffs -$16.10 Carb - $42.00 Key - $0.70







The Maiden of ours Spring 2012 (Cell Phone Video)

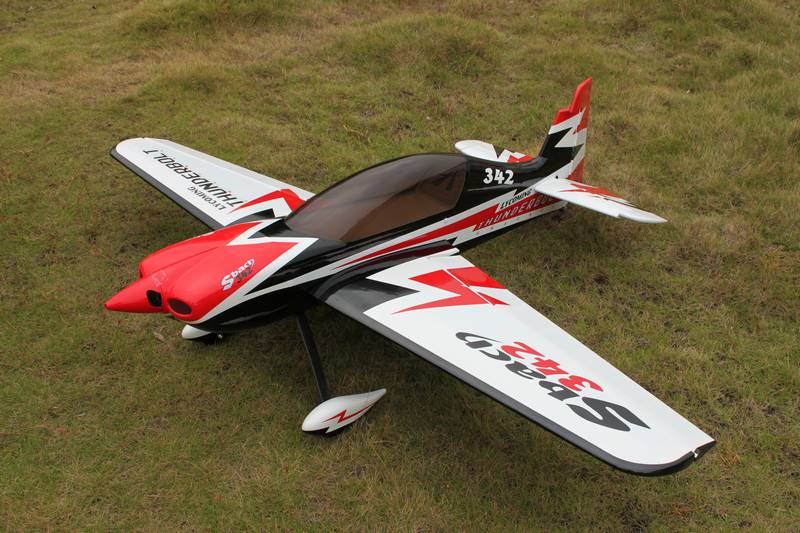

Sbach 342 Yak 55M Sbach 342





All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
