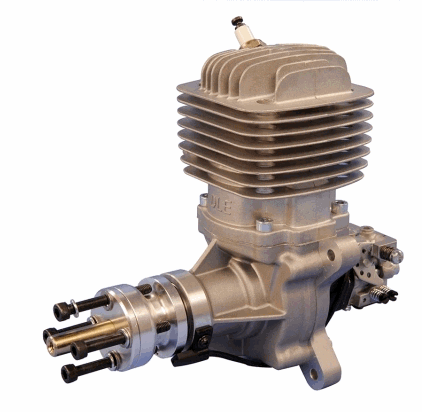

DLE 61 Gas Engine



Innovation is excellence; so, when DLE added innovations that included improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 less than four pounds and cranks out over six horsepower from a durable and long-lasting engine.

Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you'll find.



Specifications:

Displacement: 61.0 cc (3.7 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 3.86 lb (1.75 kg)
Output: 6 hp @ 7,500 rpm

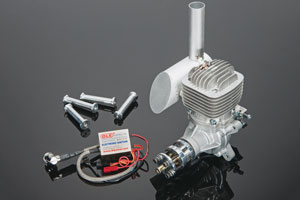

Includes: Electronic ignition module, muffler, spark plug, standoffs, spiral wire wrap & connector safety clips.
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 22x10, 23x8, 23x10, 24x8
DLE-61 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack ((Voltage regulator required if LiPo or LiFe pack is used.)
Gas/Oil Mix: 30:1
Static Thrust: 33 lb (15kg) @ 328 ft (100m) altitude; 28.7 lb (13 kg) @ 5,900 ft (1.8 km) altitude
Weight Breakdown: Engine: 3.02 lb (1.373 kg); Muffler: 3.9 oz (110 g); Ignition Module: 3.9 oz (110 g); Mount: 4.5 oz (128 g); Miscellaneous: 1.2 oz (34 g)



 DLE 61

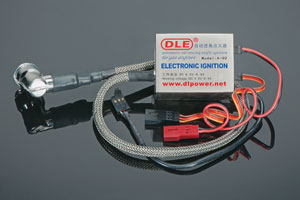

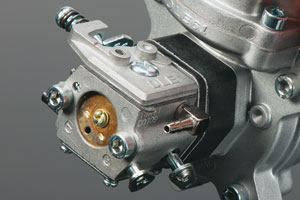

DLE 61 IgnitionDLE 61 Carb

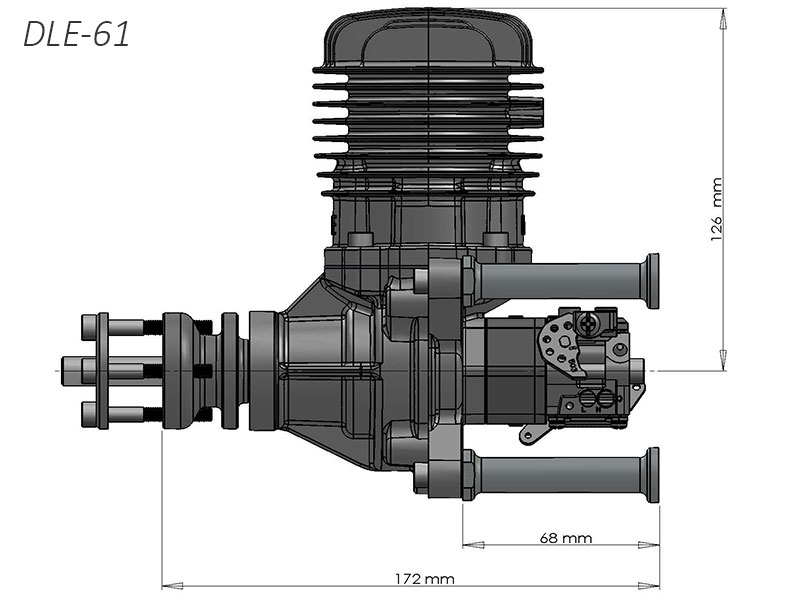

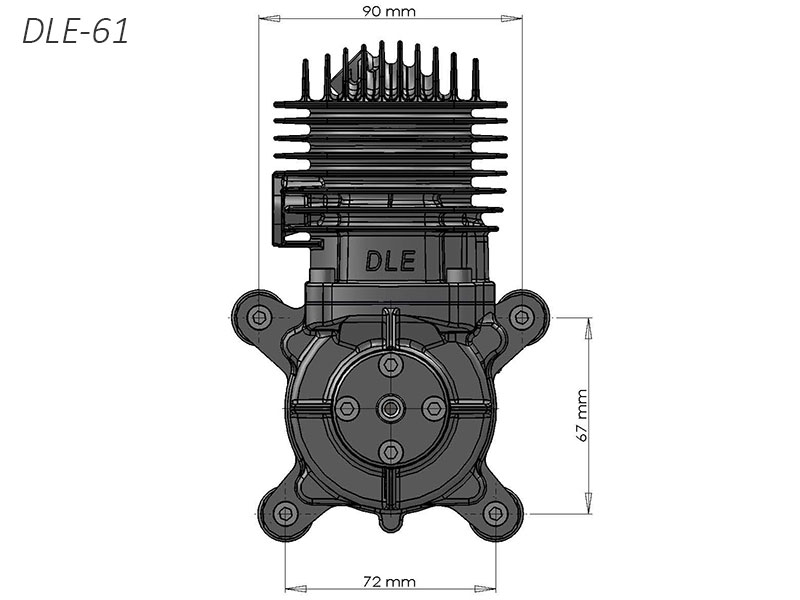

DLE 61 DimentionsDLE 61 Dimentions

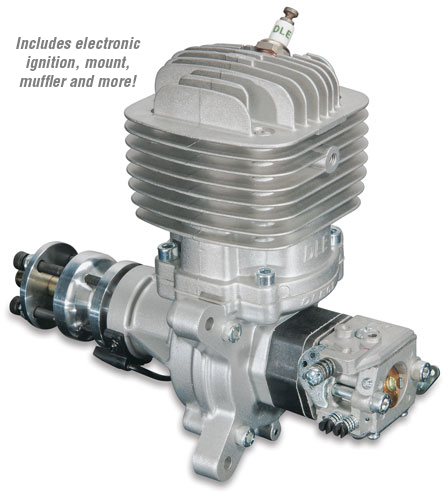

DLE 61cc Gas Engine

DLE 61



DLE 61 - $450.00









All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
