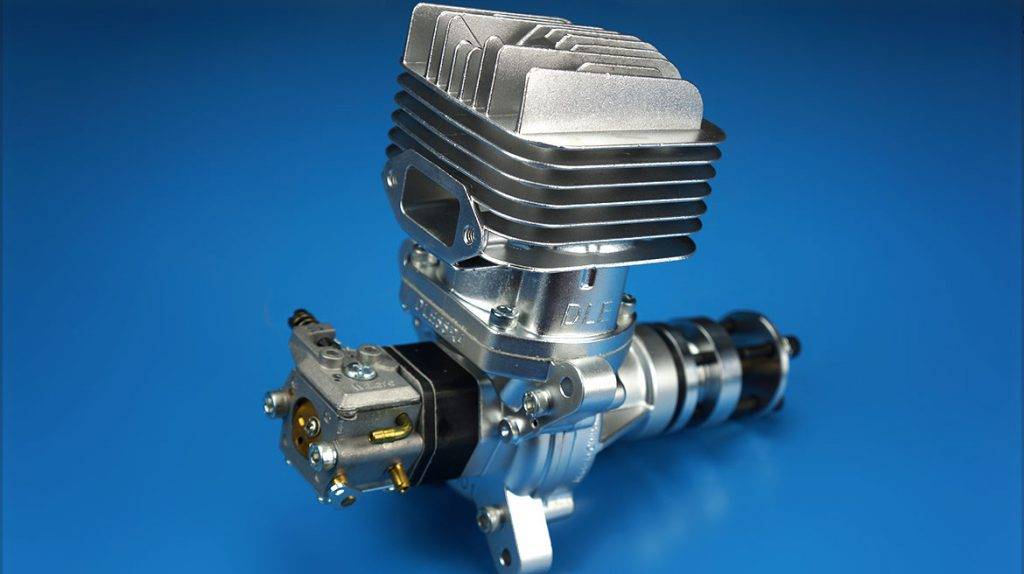

DLE 55RA Gas Engine

Latest Version



DLE takes 50cc performance to a new level with the rear exhaust DLE-55RA. Everything about this engine screams performance, from the piston skirt - designed to be lightweight for quick throttle response and tons of power - to the rear exhaust that lets you easily install a tuned pipe in your aircraft. The 55RA provides 100 more rpm than the standard DLE-55. It includes engines standoffs, electronic ignition, spark plug and Pitts style muffler.


DLE55RADLE

55RADLE 55 Rear Exhaust55cc Rear Exhaust Motor

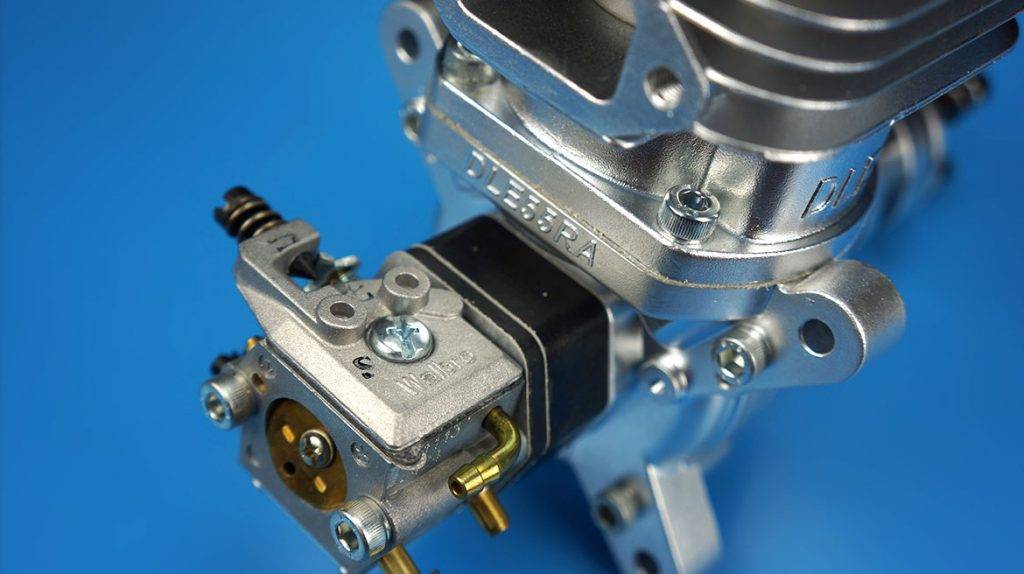

DLE 55 Carb'DLE prop hubdle carb

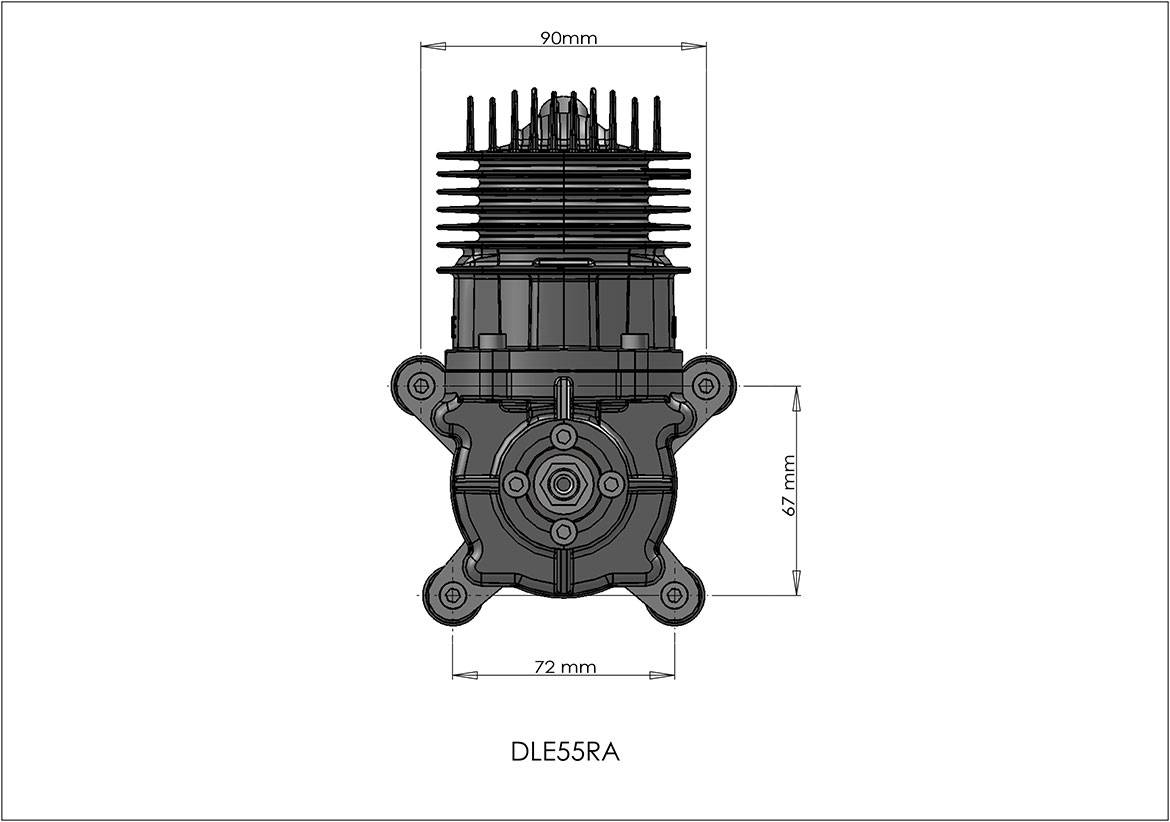

Download the Manual - Here       Dimensions - Here



Specifications:
Displacement: 55.6 cc (3.392 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1560 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 8,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, choke rod & rear carb
Suggested Propellers: 22x8, 22x10, 23x8 & 23x10


Technical Data:
Manifold: 4-petal, V-type, reed-valve, bottom induction
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.2 oz (90 g); Ignition: 5.1 oz (145 g)




DLE 55RA Gas Engine

DLE55RA

DLE 55RA - $420.00 - Free Shipping



Add an Auto Starter to your DLE55RA. No More Flipping props.

DLE55RA





 DLE 55RA With Pre Installed Auto Starter

$529.00



Controller / Electric Switch for Auto Starter Includes XT90 Plugs

This is the new controller (more stable on 3-cell). Now with a case and LED power indicator (photo Update soon). 46g, Pulse Width 1.2-1.4MS, 7.2 - 15V / 100Amp Max

We suggest 2 or 3-cell Lipo Found Here



$30.00



















All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
